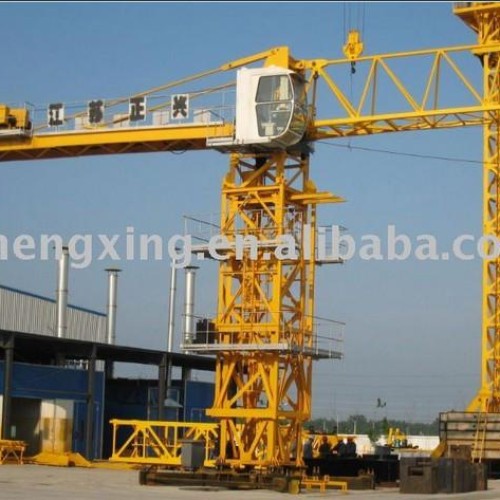

| Model NO.: | Tp70 tower crane(topless)60351 |
|---|---|
| Packaging Qty: | 1 |
| Min. Order (MOQ): | 1 |
| Manufacure Name: | Jiangsu zhengxing construction machine co., ltd. |
| Customization: | Available Customized Request |
|---|
1. Topless 2. Mast adopts a piece-structure. very convenient to transmit, store and place 3. Hoist uses double motors 1. Version: fixed and traveling type 2. Free height: 40 meters 3. Max. height: 140 meters 4. Max. radius: 55 meters 5. Jib end load: 1.0MT at 55 meters 6. Max. load: 6MT at 13.56 meters 7. Hoisting mechanism: JT1.5 8. Drum capacity: 300 meters 9. Lifting speed: 3.05m/min~80m/min 10. Slewing mechanism: HZ-70 11. Slewing speed: 0.6r/min 12. Trolley mechanism: BF-70 13. Trolley speed: 28 or 42m/min 14. Power line voltage: 380V/50Hz 15. Color: yellow 16. Counter weight: Stell-structured frame (without concrete) 17. Mast section: 1.8 x 1.8 x 3m 18. Mast section and mast section connection: by bolts 19. Foundation bolt: included (8 sets) 20. Cabin: included (air condition) 21. Telescoping cage: included 22. Pump and cylinder: included 23. Main cable: included 24. Basic mast: included
