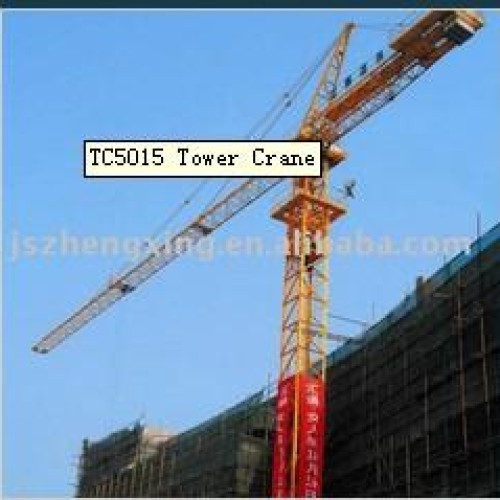

| Model NO.: | Tc5015 tower crane60075 |
|---|---|
| Packaging Qty: | 1 |
| Min. Order (MOQ): | 1 |
| Manufacure Name: | Jiangsu zhengxing construction machine co., ltd. |
| Customization: | Available Customized Request |
|---|
1. The mast adopts a piece installation structure. It is convenient to transmit, store and place 2. The hoist uses double 1. Version: fixed and traveling type 2. Free height: 45 meters 3. Max. height: 141 meters 4. Max. radius: 50 meters 5. Jib end load: 1.5MT at 50 meters 6. Max. load: 6MT at 14.9 meters 7. Hoisting mechanism: JT1.5 8. Drum capacity: 350 meters 9. Lifting speed: 3.15m/min~80.9m/min 10. Slewing mechanism: HZ-80 11. Slewing speed: 0.3 or 0.6r/min 12. Trolley mechanism: BF-80 13. Trolley speed: 28 or 42m/min 14. Power line voltage: 380V/50Hz 15. Color: yellow 16. Counter weight: Stell-structured frame (without concrete£© 17. Mast section: 1.8 x 8 x 3m 18. Foundation bolt: included (8 sets) 19. Cabin: included 20. Telescoping cage: included 21. Pump and cylinder: included 22. Main cable: included 23. Basic mast: included
