Product Description

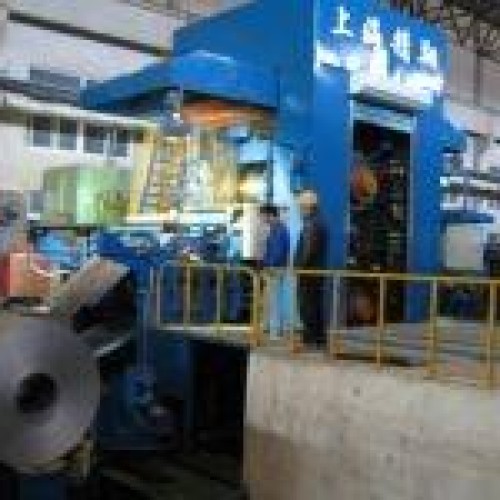

The temper mill is used for tempering the cold rolled steel coils in order to enhance strip flatness and to improve mechanical characteristic such as deep-drawing characteristic of the strip steel. A temper mill mainly consists of a pay-off reel, "S" rolls before and after mill. We can provide 2-high and 4-high temper mill. Process flow of strip steel temper mill Coil receiving table---- coil loading car---- strip head disposal device---- payoff reel---- entry bridle roll---- hydraulic shear---- entry guiding plate ----main temper mill ----exit guiding plate---- exit bridle roll ----tension reel ----wrapper---- coil loading car Specification: Material: Hot rolled and pickled or cold rolled Strip thickness: 0.15-6.5 mm Strip width: 400-1300mm Max. rolling speed: 510m/min. Mill type: 4Hi S roll location: Before/after stand
