| Model NO.: | Pickling line47164 |
|---|---|
| Min. Order (MOQ): | 0 |
| Manufacure Name: | Shanghai jingxiang industrial (group) co., ltd. |
| Customization: | Available Customized Request |
|---|

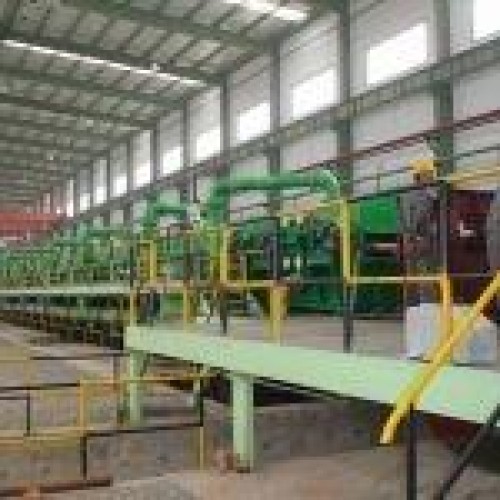

Push-pull Pickling is a semi-continuous production. It is characterized with less cost, less consumption, easier operation and fewer accidents. Moreover, it can acid washing many kinds of incoming material. The line capacity we supplied is among 100000~600000 tons annually. Material: Hot rolled Strip thickness: 1.8-6.5 mm Strip width: 450-1530mm Process speed: 120m/min. Pickling type: Push-pull Pickling medium: HCl Continuous Pickling is a production that the steel strip is pulled continuously through the acid tank and rinsing tank. The line is characteristic with high efficiency and output, and low electricity consumption. The annual output of the line is 600000~1000000 tons and the strip thickness is 2.0-6.5mm. Material: Hot rolled Strip thickness: 2.0-6.5mm Strip width: 450-1530mm Max. Process speed: 300m/min. Pickling type: Continuous Pickling medium: HCl Process flow of continuous pickling line: Loading manually---- coil loading car---- No. 1 payoff reel---- No. 1 payoff scrape
Loading ..
