Product Description
Product Details
Basic Info.
Model NO.:
150052
Part:
Railway Rail
Warranty:
>3 Years
Certification:
UIC, AREMA, BS, GB/T 1222, DIN 17221
Bolt Grade:
High Standard
Color:
Plain
Material:
U71mn/50mn
Bottom Width:
63.5-170mm
Web Thickness:
5.9-44mm
Head Width:
32.1-120mm
Secondary or Not:
Not
Length:
6,8,9,10m or as Per Required
MOQ:
50 Ton
Weight:
8kg/M-120kg/M
Export Markets:
Global
Additional Info.
Trademark:
Alex
Packing:
in Bulk
Standard:
SGS
Origin:
Jiangsu
HS Code:
730210000
Production Capacity:
1000 Tons/ Month
Product Description
Specifications
Chinese standard Railway train Steel Rail
1. Certificate of factory
2. Certificate of Origin
3. Third party inspection

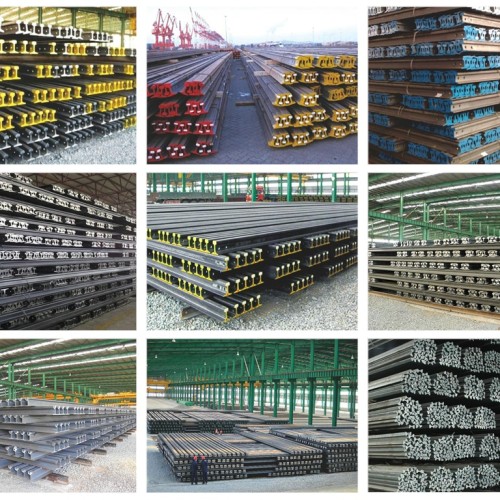

Chinese standard Railway train Steel Rail
Heavy Rail
Size: 38kg/m,43kg/m,50kg/m
Length: 12-36m or Other Length Accord Requirement
Material: 50Mn/U71Mn
Standard: GB/T699-1999,GB2585-2007 or Other
Heavy rail Size (Kg/m) Height (mm) Bottom width (mm) Head width (mm) Middle thickness (mm) Length (m) Weight (kg/m)
38 134 114 68 13 12.5-25 38.733
43 140 114 70 14.5 12.5-25 44.653
50 152 132 70. 15.5 12.5-25 51.514
Kunshan Alex Railway Fastening Co., Ltd manufactures railway fasteners and standard components. As a leading railway fasteners manufacturers in China,with production license of Chinese railway Ministry, advanced technology, high precision inspection instruments and service, our products have been widely exported the USA, Germany, Spain, Japan, Australia, Italy, Netherlands, Belgium, Poland, the UK, India, and South Africa etc.
We can provide products according to customers drawings and samples.Our main products are as following:
1. Screw spike/Coach screw/Drive screw/Sleeper Screw, Dog spike/Railroad spike/Lock spike/Cut spike,etc.
2. Rail clip/ Tension clamp/ E, R, SKL clip/ Deenik clip
3. Swivel Bolts/ Track Bolt/ Special bolts/ U bolts/ J bolts/ Anchor bolts/ Foundation bolts/ Stud bolts/ Rod bolts/ Curved bolts/ Tunnel bolts
4. Tie plate/ Base plate / Rail plate/ Rail fixing base/ Rail Pads/ Sole plate/ Sole pad
5. Fish plate / Joint bar / Rail joint/ Splice Bar
6. Track bolt/ T bolt / Rail bolt/ Clamp bolt/ Inserted bolt/ Clip bolt/ Fish bolt/ Square bolt/ Rod bolt /Rail joint bolt
7. Clamp plate/ Rail spring clamp/ Anchor plate/ Steel clip
8. Rail Shoulder/ Rail sleeper Inserts/ Rail Anchors for rail sleepers
9. Plastic dowel / Guide plate/ Nylon insert
We are trying to supply the best products at the best price!
Company Profile
| |
Business Type: |
Rail fastener,customized and special fastener's manufacturer |
| |
Comapany: |
Kunshan alex railway fastening |
| |
Branches: |
0 |
| |
Address: |
No.1255 Chengbei Road |
| |
City: |
Kunshan city |
| |
Zip/Postal: |
215300 |
| |
State: |
Jiangsu |
| |
Country: |
China |
Kunshan Alex Railway Fastening Co., Ltd manufactures railway fasteners and standard components. As a leading railway fasteners manufacturers in China,with production license of Chinese railway Ministry, advanced technology, high precision inspection instruments and service, our products have been widely exported the USA, Germany, Spain, Japan, Australia, Italy, Netherlands, Belgium, Poland, the UK, India, and South Africa etc. We can provide products according to customers drawings and samples.Our main products are as following:
1. Elastic Rail Clip and Clamp, SKL clip,E Clip, Deenik clip, Fist clip;
2. Rail Screw Spike/coach screw/drive screw/dog spike;
3. Plastic Dowel/screw dowel;
4. Track Bolt with Nut;
5. Rail Base (Tie) Plate;
6. Rail Fish Plate, Fish Bolt, nut and washers;
7. Railway Shoulder (Insert);
8. Railroad Rubber and EVA Pad;
9. Rail spring washer, Rail plain washer;
10. Rail Clamp plate;
11. Train Block shoe/ Brake block;
12. Rail Anchor;
13. Rail Shoulder;
14. Steel Rail;
15. Steel Sleeper.
We try our best to supply the quality products at the best price..
