Product Description
Product Details
Basic Info.
Model NO.:
RSS1508025
Type:
Rail Screw Spike Material: Carbon Steel
Part:
Rail Screw Spike Surface: Plain Oiled, Zinc, HDG
Warranty:
Rail Screw Spike Class: 3.6/4.6/4.8/5.6
Charge Time:
Rail Screw Spike Size: M16-60 *L80-600
Certification:
UIC, AREMA, ASTM, BS, TB
Age:
Rail Screw Spike Usage: for Fastening System
Battery Life:
Rail Screw Spike Features: High Fixing
Power:
Rail Screw Spike Head Style: Customized
Bolt Grade:
8.8
Color:
Customized
Material:
Steel Q235,35#,45#; Aolly Steel 40cr,42CrMo,35CrMo
Surface Treatment:
Plain Oiled, Oxygen Black, Zinc Plated, HDG
Grade:
3.6/4.6/4.8/5.6
Size:
M16-M60 * L80-600
Usage:
for Fastening System
Features:
High Fixing
Model Number:
Customized According to The Drawing
Products Certification:
ISO9001-2008, SGS
Head Style:
Customized
Sample:
Free with Courier Fee by Buyer
Export Markets:
Global
Additional Info.
Trademark:
ALEX
Packing:
Woven Bags with Pallet of Fumigation-Free
Standard:
M16-M60 * L80-600
Origin:
Suzhou Jiangsu
HS Code:
731815
Production Capacity:
2000 Tons Per Month
Product Description

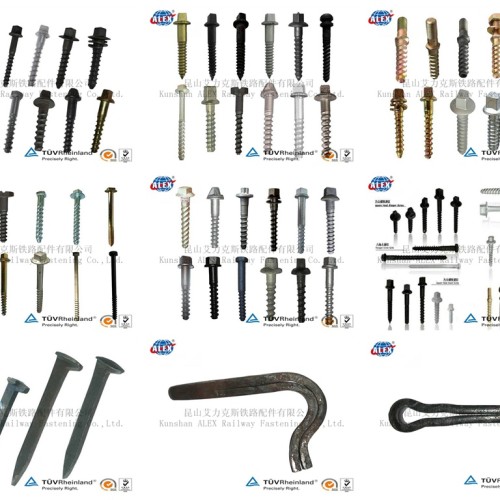

Railway Screw Spike
A screw spike, rail screw (or lag bolt) is a large (~6 in or 152 mm length, slightly under 1 in or 25 mm) metal screw used to fix a tie plate or fasten rail. Screw spikes are fixed into a hole bored in the sleeper. The railway screw spike has a higher cost to manufacture than the rail spike but has the advantage of greater fixing power; approximately twice that of a rail spike, and can be used in combination with spring washers.
Product Tensile Strength Yield Strength Elongation Reduction of Area Hardness
High Tensile Screw 120,000psi(min) 92,000psi(min) 14%(min) 35%(min) HRC22-HRC32
Kunshan Alex Railway Fastening Co., Ltd manufactures railway fasteners and standard components. As a leading railway fasteners manufacturers in China,with production license of Chinese railway Ministry, advanced technology, high precision inspection instruments and service, our products have been widely exported the USA, Germany, Spain, Japan, Australia, Italy, Netherlands, Belgium, Poland, the UK, India, and South Africa etc. We can provide products according to customers drawings and samples.Our main products are as following:
1. Elastic Rail Clip and Clamp, SKL clip, E Clip, Deenik clip, Fist clip;
2. Rail Screw Spike/coach screw/drive screw/dog spike;
3. Plastic Dowel/screw dowel;
4. Track Bolt with Nut;
5. Rail Base (Tie) Plate;
6. Rail Fish Plate, Fish Bolt, nut and washers;
7. Railway Shoulder (Insert);
8. Railroad Rubber and EVA Pad;
9. Rail spring washer, Rail plain washer;
10. Rail Clamp plate;
11. Train Block shoe/ Brake block;
12. Rail Anchor;
13. Rail Shoulder;
14. Steel Rail;
15. Steel Sleeper.
We try our best to supply the quality products at the best price.
Company Profile
| |
Business Type: |
Rail fastener,customized and special fastener's manufacturer |
| |
Comapany: |
Kunshan alex railway fastening |
| |
Branches: |
0 |
| |
Address: |
No.1255 Chengbei Road |
| |
City: |
Kunshan city |
| |
Zip/Postal: |
215300 |
| |
State: |
Jiangsu |
| |
Country: |
China |
Kunshan Alex Railway Fastening Co., Ltd manufactures railway fasteners and standard components. As a leading railway fasteners manufacturers in China,with production license of Chinese railway Ministry, advanced technology, high precision inspection instruments and service, our products have been widely exported the USA, Germany, Spain, Japan, Australia, Italy, Netherlands, Belgium, Poland, the UK, India, and South Africa etc. We can provide products according to customers drawings and samples.Our main products are as following:
1. Elastic Rail Clip and Clamp, SKL clip,E Clip, Deenik clip, Fist clip;
2. Rail Screw Spike/coach screw/drive screw/dog spike;
3. Plastic Dowel/screw dowel;
4. Track Bolt with Nut;
5. Rail Base (Tie) Plate;
6. Rail Fish Plate, Fish Bolt, nut and washers;
7. Railway Shoulder (Insert);
8. Railroad Rubber and EVA Pad;
9. Rail spring washer, Rail plain washer;
10. Rail Clamp plate;
11. Train Block shoe/ Brake block;
12. Rail Anchor;
13. Rail Shoulder;
14. Steel Rail;
15. Steel Sleeper.
We try our best to supply the quality products at the best price..
