Product Description

Real-Time PCR conducts the whole process of DNA amplification and PCR products analysis in an enclosed tube and realizes real-time detection as well as auto-analysis under computer control.

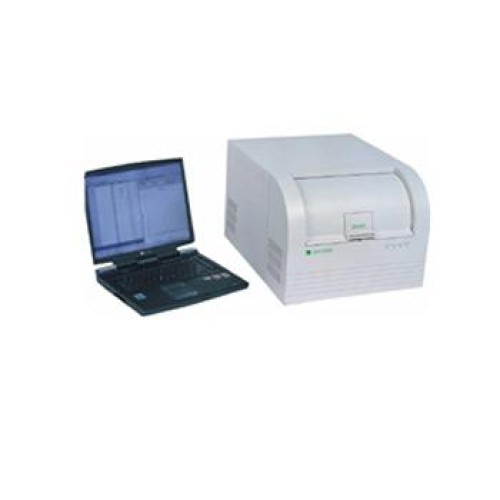

Real-Time Nucleic Acid Amplification Fluorescence Detection System

• Good practicability
• Real-time data monitoring
• Real-time analysis display of the melting curve
• Quantitative analysis
• Product quality
• Automatic assessment of negative or positive result
• Wide detection scopes (101-1010copies/ml)
• High sensitivity and accuracy

Technical Specification:

• Sample Capacity: 48 X 0.2ml
• Excitation Light Sources: Light Emitting diode (LED)
• Excitation optical wavelength: 470mm
• Detection optical wavelength: 530mm
• Detectable dyes: SYBR Green1, FAM, and TAMRA etc.
• Sensitivity: 103 copies/ml
• Reading time per sample: 1h20 degree C
• Min reaction volume: 20-50
• Modular temperature scope: 30~99 degree C
• Temperature accuracy: = +0.5
• Temperature homogeneity: = +0.5(after 30 seconds)
• Rate of temperature ascending and descending: 3 degree C/s (max).
• Working environment, Environment temperature 10 ~ 30 degree C and relative humidity: 20%~80%.
• Input Power Supply: AC220V, 50Hz
• Operating System: Window 2000/XP
• Energy Consumption: 1200W
• Overall Dimension: 520mm x 420 mm x 320mm (not including computer system).
• Weight: 25 Kg (not including computer system).
