Product Description

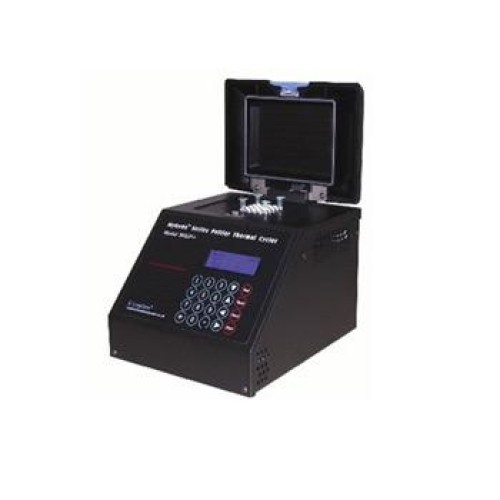

BIO GENE™ Gradient Thermal Cycler PCR optimizes polymerase reactions with steep accuracy with gradient and column uniformity less than 0.3 deg C and temperature from 30 to 99.9 deg C.

The laboratory PCR are capable to increase and decrease temperature from 0.1 deg C to 10 deg C coupled with time cycle of 1 to 60 sec. The bottle neck of auto restart is taken care and the old temperature is fixed at 4 deg C that makes it unique when compared with other PCRs.

Auto Pause, Time Run Display, Hot Cover Temperature, Auto Shut Off and changing the temperature from 0.1 deg C to 3 deg C are handy features.

Technique index (Model: MG96G):

• Block Capacity :0.2mlx96wells + 0.5mlx77wells
• Block Temperature Range: 0°C ~ 99.9°C
• Block Heating Rate :3°C/s
• Block Cooling Rate: 2°C/s
• Block Uniformity := ± 0.2°C
• Block Accuracy := ± 0.2°C
• Mode of Temperature Control: Sim-Tube & Block Mode
• Ramping Rate Adjustable 0.1°C ~ 3°C
• LCD Large-size Blue LCD
• Max. No. of storable programs 125 Typical Programs
• Max. No. Of Cycle; 99
• File Named : Yes
• Temp. Increment/Decrement: 0.1 ~ 10°C
• Time Increment/Decrement : 1 ~ 60s
• Auto Restart :Yes
• Fixed at 4°C
• Auto Pause: Yes
• Running Time Display :Yes
• Hot Cover Temperature :105°C
• Height of Cover Seamless :Adjustable
• Hot Cover Auto Shut-Off :Yes
• Dimension(LxWxH): 267x220x253mm
• Net Weight :6.8kg
• Wide Power Supply Range: 110V±10%, 220V±25%, 50/60Hz
• Gradient Specification
• Gradient Accuracy: = ± 0.3°C
• Column Uniformity: =± 0.3°C
• Temp. Range for Gradient:No 30°C -99.9°C
• Temp. Differential Range: No 1°C -30°C
• Wide Power Supple Range:170~270V,50/60HZ
