Product Description

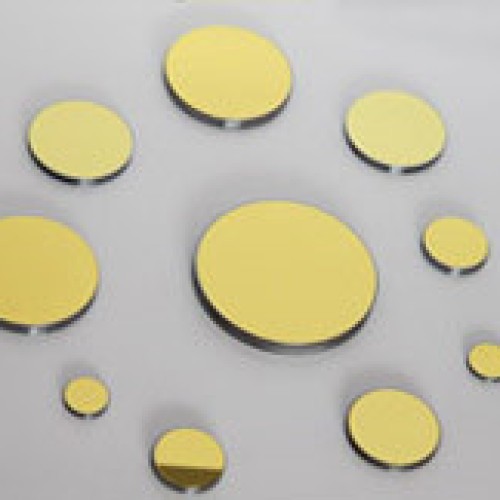

Si/Mo/K9 glass reflective mirror 20/25/30 diameter Silicon reflector lens take semiconductor crystals as heat dissipation carrier. It is first processed into a crystal plate, finely polished and grinded and then coated with a gold layer for reflection and a protective film to prevent falling of the gold layer. It is used for high power laser devices and can provide rapid cooling, resistance to deformation, high reflection efficiency, resistance to wiping, long service life and small power loss. Various Specifications and Models of Silicon Reflector Lens Diameter（MM） Lens Thickness（MM） Material Reflection Efficiency 20 3 Silicon >99% 25 3 Silicon >99% 30 3 Silicon >99% Molybdenum reflector is different from glass reflector in the production process. It is coated with a high-reflecting film and protective film after fine polishing. Prior to installation and use, it shall be soaked in the ethyl alcohol for several minutes to tear the protective film on the surface. It can provide high reflecting efficiency, small thermal deformation coefficient, resistance to wiping, long service life and small power loss. Various Specifications and Models of Molybdenum Reflector Lens Diameter （MM） Lens Thickness（MM） Material Reflection Efficiency 20 3 Molybdenum >94% 25 3 Molybdenum >94% 30 3 Molybdenum >94% Glass reflector lens is coated with a protective film on the gold layer after gold plating to protect the gold layer from damage and improve reflection efficiency of the gold layer, resistance to wiping and service life. Glass reflector is mainly used for CO2 laser devices of below 100W... Various Specifications and Models of Glass Reflector Lens Diameter（MM） Origin Lens Thickness (MM) Material Reflection Efficiency 20 USA or China 3 Glass >96 25 USA or China 3 Glass >96
