| Model NO.: | He-ne laser power supply he ne laser tube driver helium-neon |
|---|---|
| Packaging Qty: | 4 |
| Min. Order (MOQ): | 4pcs |
| Manufacure Name: | Ruby laser technology co.,ltd |
| Customization: | Available Customized Request |
|---|

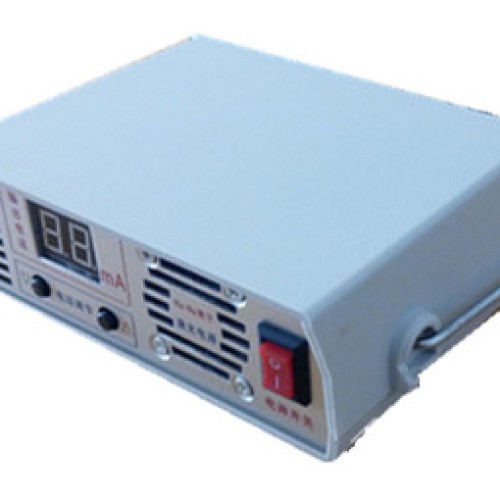

He-Ne laser power supply He Ne laser tube driver helium-neon 1. Main features: 1. Specificity: This power supply is specially designed for Ne-He laser tube. It can make He-Ne laser tube more easier to start. 2. Advanced technique: This power supply adopts soft switching technique. It promotes efficiency, improve reliability and reduce interference. 3. The start and stop of laser can be easily controlled by TTL level. 4. This power supply has current regulation function which can realize optional regulation of He-Ne laser tube’s output power. 5. This power supply can accurately control current output. It makes output power of He-Ne laser tube very stabile. 2. Specification: Input Input voltage AC220V or AC110V (Please specify when placing orders) AC Frequency 47---440Hz Max Input power 10-200W Max Input current 3A Output Max Output voltage DC 25KV Max Output current DC 20 mA Efficiency ≥90%(Full load) MTBF ≥10000 Houre Withstand Voltage Input-Output,Input-Enclosure:AC1500V 10mA 60s Environment Operating temperature:(-10-40)℃, Relative humidity: ≤90% Cooling Natural cooling Dimension L×W×H=170×142×80(mm)
