| Model NO.: | Plastic blow moulding machine 47778 |
|---|
| Customization: | Available Customized Request |
|---|

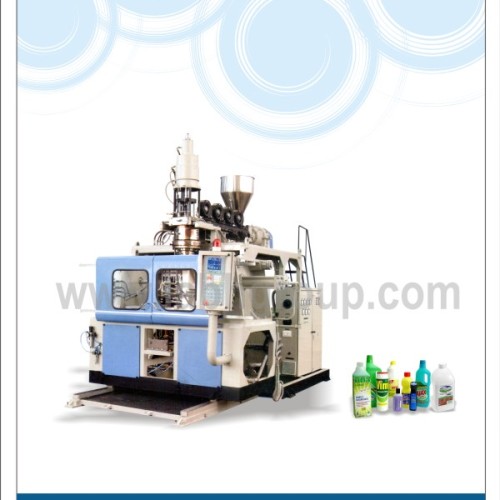

Extrusion blow molding machine for making plastic jar and containers from Plastic granules. Specification: Screw diameter (mm) : 38 - 90 Maximum article weight (gms) : 50 to 3000 Maximum article diameter (mm) : 65 to 400 Mold Thickness (mm) : 120-300 Maximum mold height (mm) (HxW): 225/130 to 825/710 Volume (ml) : 30 to 50000 Maximum mold open stroke (mm): 125 to 750 Features: ¿ With PLC control system ¿ Touch Screen for easy Men-Machine interface ¿ Three stage parison programmer ¿ Auto Deflashing system ¿ Hot cutting device ¿ Energy saving electro proportional hydraulic system ¿ Pressure switch for accurate clamping tonnage ¿ A.C. Variable frequency drive ¿ Linear scale for carriage cylinder movements ¿ Three phase blowers ¿ Heating insulation cover for energy saving ¿ Single piece casted top blowing assembly ¿ Super finish tie-bars for smooth movements
