| Model NO.: | Multilayer film extrusion plant41802 |
|---|---|
| Manufacure Name: | Labh group of companies-plastic processing machines division |
| Customization: | Available Customized Request |
|---|

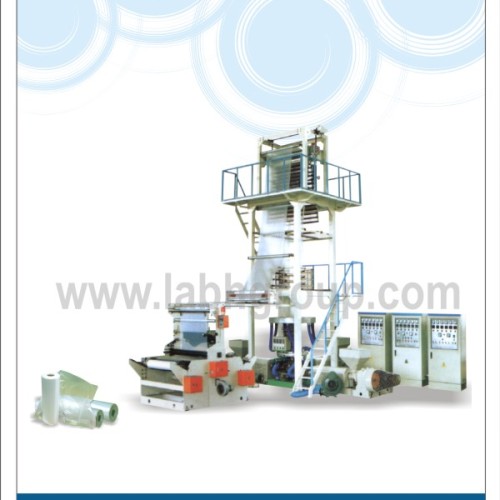

Multilayer blown film extrusion plant for making LDPE / LLDPE / HM / HDPE film from plastic granules for various applications Specification: Screw Dia (mm) : 40 to 60 L/D Ratio : 26: 1 to 30:1 Output (kg/hr) : 130 to 400 Lay flat width (mm) : 600 to 1350 Thickness range (microns): 25 to 200 No. of layers : 2 to 5 Material : HM, LDPE, LLDPE, HDPE, GPPS, PP, PE, Features: Integrated supervisory computer control Automatic thickness and GSM control Intelligent PLC controller system Load cell based tension control system Digital internal bubble cooling system. Fully automatic center gap surface winder. Finish Plain or Textured /Embossed The extra long collapsing frame incorporating dynamically balanced aluminum idlers, helps producing films with improved flatness. Usage: For various industrial requirements of film liquid packaging films, food packaging films, ultra high barrier films, high dart resin sacks films, meat and cereal packaging films, oi
