| Model NO.: | Wireless transmitter/receiver module66326 |
|---|---|
| Packaging Qty: | Caton |
| Min. Order (MOQ): | 2 |
| Manufacure Name: | Shenzhen kyl |
| Customization: | Available Customized Request |
|---|

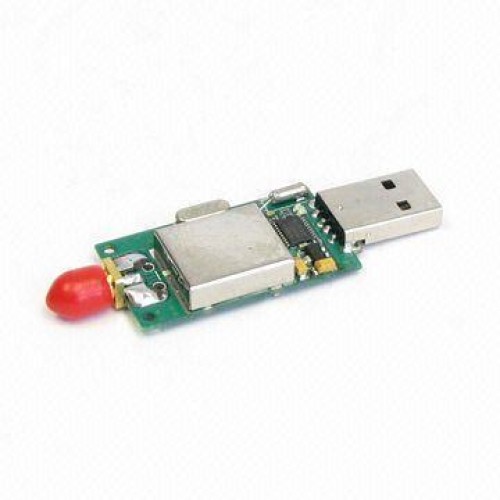

KYL-220 used for Wireless POS, Wireless terminal, Wireless nurse calling system USB interface, short range, optional carrier frequency Data Sheet: o RF power: 10mW o Operating voltage: 5 V o Receive current: <20mA o Transmitting current: <25mA o Sleep current: <20uA o Carrier frequency: 433MHz, also can customize 300 to 350MHz, 390 to 460MHz, and 780 to 925MHz or ISM others o Communication connects: USB o Baud rate: 1,200/2,400/4,800/9,600/1,9200/38,400/100kbps o RF line-of-sight range: more than 100m o Size: 40 x 24 x 6mm (without antenna port)
