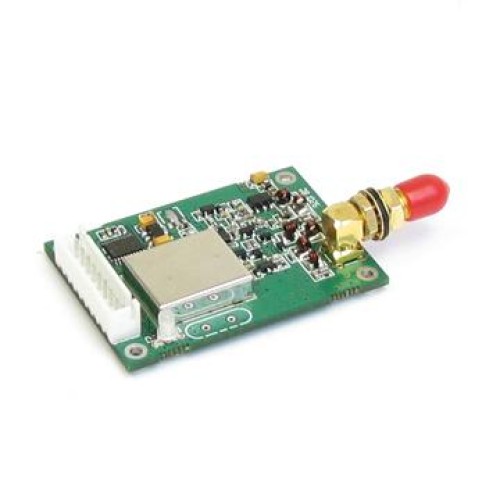

| Model NO.: | Micro-power wireless transceiver modules40593 |
|---|---|
| Packaging Qty: | Caton |
| Min. Order (MOQ): | 2 |
| Manufacure Name: | Shenzhen kyl |
| Customization: | Available Customized Request |
|---|
Usually used for Access Control System, Wireless Alarm System... Small size, low power consumption, good stability and reliability. Data Sheet: o Power output: DC 5V (customize) o RF power: =500mW(customized 500mW~1W) o RF effective rate: 1,200/2,400/4,800/9,600/19,200bps o Interface baud rate: 1,200/2,400/4,800/9,600/19,200bps optional o Frequency band: 433 MHz, 450MHz,470MHz, 868MHz, 915MHz or ISM others o Interface: standard RS-232/RS-485/TTL o Communication mode: half-duplex o Offering a transparent data interface, it is suitable for any standard or non-standard user protocols o Channel: 8(default),16/32(customized) o Receive current: less than 28mA(TTL connect) o Receive sensitivity: -123dBm at 1,200bps); -118dBm at 9,600bps) o Transmitting current: less than 400mA o Sleep current: less than 20uA o RF line-of-sight range: more than 2km (BER=10-5 at 9,600bps); 3km (BER=10-5 at 1,200bps) o Size: 53 x 38 x 10mm (without antenna port)
