Product Description
Guangdong Global Telecommunication Technology GT5200SV2 series IP PBX adopt advanced hardware and software technology and telecom grade design to ensure high reliability of equipment. The system adopts mature and high performance CPU and DSP with embed real time operation system and high efficient algorithm to provide high performance and quality of voice. GT5200SV2 support warm backup on single tributary card and network uplink port.The system can shift between main and backup while fault or failure occurred to ensure the entire network reliability.
GT5200SV2 can provide complete basic and value added service such as SMS, voice mailbox, call center, attendant desk answering, facsimile and so on. The unit can max match various service request from enterprise users as following diagram.

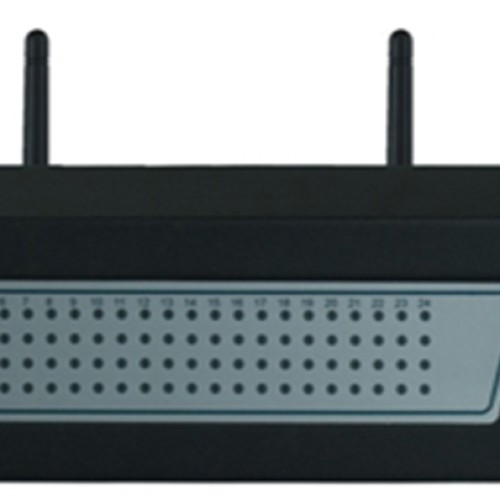

SME/SoHo small capacity IP PBX GT5200SV2
Product Feature
â— Abundant service: call conference, third party calling, MDS, Video call, Video conference, Mass texting and so on.
â— Support various kind of terminal access such as analog phone, IP phone, Video Phone, WiFi mobile, CMDA mobile and magnetic telephone.
â— High integrated system: embed telephone conference system, integrating tradition switch, soft switch, trunking gateway, access gateway and so on.
â— Adopt TDM+IP switch dual platform design, provide smooth upgrade from tradition PBX to IP PBX. And also realize smooth connection on PSTN, NGN and IMS.
â— High reliability of system, the core component is adopting warm backup design. It also support dual IP PBX backup in network topology.
â— Advanced voice quality assurance: support silence suppression, silence compression, echo suppression, packet loss compensation, dynamic jitter buffer, automatic gain function, supports a variety of voice codecs, such as G.711, G.723, G.729,G.726-32, T.30, T.38, FR, EFR, AMR, etc.
Technical Parameter
Capacity
Maximum numbers of users
1,000 SIP users, 96 analog extensions
Port
Maximum 4 E1/T1 ports, 32 FXO ports
Media resources
Maximum 128 concurrent calls, 64 channels audio conference
Protocol
SS7, R2, PRI, QSIG, SIP, BRI, H.323, RTMF, NO.1
Codec
G.711A/μ, G.723.1, G.729A
Internet interfaces
2*RJ45 GE WAN port, 1*RJ45 FE LAN port
Call features
Call transfer, call forward, call pickup, call restriction, abbreviated dialing, hot line, Do Not Disturb, wake-up call, caller ID, call waiting, three-party call, blacklist and whitelist, one number reach you, ring group
Physical specifications
Power
Input 110~240 AC
Maximum consumption
180W
Dimension
1.5U standard rack-mounted, 436mm×400mm×66mm
Weight
7.5kg
Operating temperature
0℃~45℃
Relative humidity
20%-90%, no condensing
Typical Network Diagram
