| Model NO.: | Pmux |
|---|---|
| Packaging Qty: | Carton |
| Min. Order (MOQ): | 1 pair |
| Manufacure Name: | Global tech |
| Customization: | Available Customized Request |
|---|

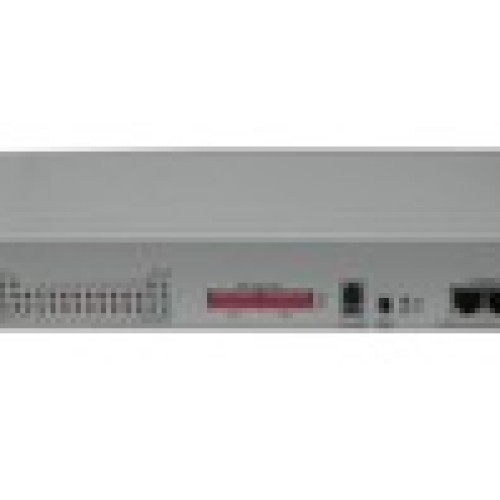

Global Tech PMUX-E series manageable PDH has adopted the state-of-the-art technologies and advanced FPGA to provide 1E1/4E1/8E1/16E1 multiplexing and optical electrical regeneration. With plug and play modularized design, GP6 can support all kinds of customized service requirement. The equipment able to support more than 2FE with shared bandwidth 10/100/1000M. Product Feature * Provide max. 16 E1 channel transparent transmission with 4 wire speed 10M/100/1000M Ethernet channels. Fully comply with G.703 and IEEE802.3 * With optical line bit rate at 155.52Mbps, reach the max. 120KM transmission distance. * 1+1 optical interfaces support forced switch and automatic protection switch. * Support Automatic Laser Shutdown on all optical interfaces. * E1 interface supports HDB3 E1 coding and comply with G.703, G.823 and G.742. * 4 Ethernet interfaces support full/half duplex auto negotiation. * Transparent transport IEEE802.1Q and flow control are provided at Ethernet Interfaces. * Sophisticated alarm function. Monitor the remote end equipment status from local end. * Support E1 loop back function on local and remote end, with convenience for equipment maintenance and management. * Support Engineering Order Wire with standard phone set. * Rack mounted chassis and standalone desktop configurations are available. * Desktop configuration provides RS232 management port. Chassis configuration provides Ethernet and RS232 management port. Both configurations support E1 in-band management. Specification Optical Interface * Wavelength: 1310nm, 1550nm * Tx Power: ≥ -10dBm * Rx Sensitivity: ≤ -35dBm * Rx Range: > 27dB * Connector: FC, SC Ethernet Interface * Work Mode: Full/half duplex, auto negotiation * Bit Rate: Support max. 100/1000M wired line Ethernet * Connector: RJ45 * Related Standard: IEEE802.3 * MDI/ MDIX auto negotiation. E1 Interface * Bit Rate: 2.048M bps * Coding: HDB3 * Impedance: 75Ω,120Ω * Related Standard: ITU-T G.703, G.821, G.82 Operation Environment * Working Temperature: -10C~ 60C * Storage Temperature: -40C~ 85C * Relative Humidity: 0%~95%, non-condensing * No corrosive and solvent gas, no dust and heavy EMI * Power Supply: AC 220V, DC -48V
