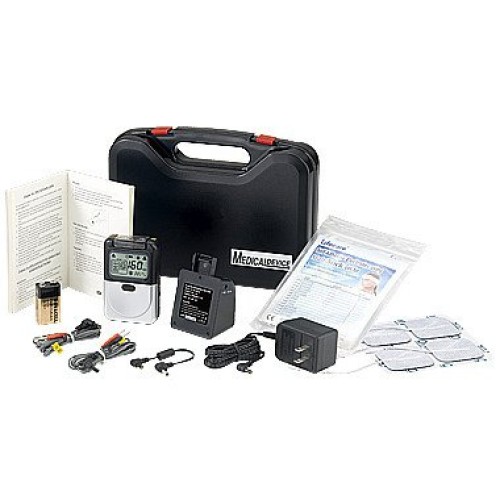

| Model NO.: | Interferential therapy pocket type model imported |
|---|---|
| Manufacure Name: | Biotronix |
| Customization: | Available Customized Request |
|---|
MECHANISM TECHICAL DESCRIPTION 01 Channel Dual, isolated between channels 02 Dimensions 107x62x27mm 03 Weight Approximately 150 grams, battery included 04 Amplitude Adjustable 0-60mA peak into 500 ohm load each channel,constant current 05 Carrier Frequency 4000Hz, Fixed (CH1) 06 Modulating Frequency 4-160bps, Adjustable (CH2) 07 IF Frequency Modes 9 modes, 1 constant mode, 5 frequency shift modes, 3 auto sweep Modes 08 Constant Mode 4-160bps, Adjustable 09 Auto Sweep 4-45 bps 80-145 bps 4-SET bps 10 Frequency Shift Five modes, 1/1 abrupt shift 6/6 abrupt shift 6/6 ramped 10/10 abrupt shift 10/10 ramped bps adjustable 11 Sweep Time 15 seconds 12 Frequency Shift Percent Frequency shifts from 30% below the set frequency to 60% above and then return to 30% below the set frequency. 13 Output Configuration Quad polar (4 electrodes) 14 Wave form Symmetrical Balanced Sine Wave 15 Interference Pulse Frequency 4-160 bps, Adjustable, 4 bps/step 16 Pulse Duration 125 μs maximum 17 Patient Compliance Meter Display total treatment time 18 Lock Prevents the patient from accidentally changing any of the set parameters 19 Timer 15, 30 minute selectable
