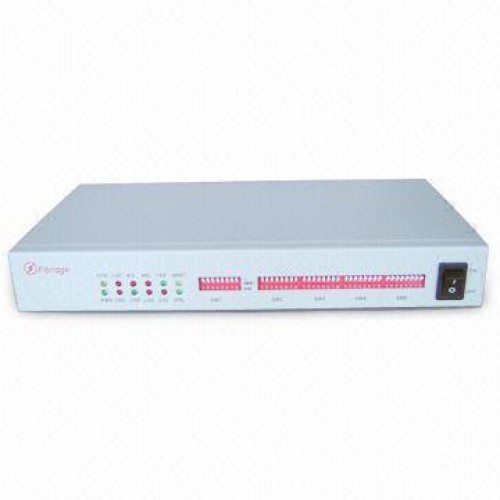

| Model NO.: | 10/100m ethernet & v.35 to e1 protocol converter1134 |
|---|---|
| Min. Order (MOQ): | 1 |
| Manufacure Name: | Beijing fibridge |
| Customization: | Available Customized Request |
|---|
Features Interface conversion between E1 and V.35, E1 and Ethernet Support ITU-T V.35, G.703, G.704, G.823 Fully compatible with IEEE 802.3 and Ethernet Standards Standalone and chassis module available, support hot-swap Framed (N*64Kbps) and unframed (2.048Mbps) optional, support continuous and discontinuous timeslots setting Ethernet port 10Mbps, Full/Half Duplex mode compatible 10Base-T LAN Interface on RJ-45 connector and MDI/MDI-X auto-crossover Frame mode support PCM30/ PCM31 CRC/non-CRC auto-negotiation on E1 interface Support remote bandwidth control, and remote loop back under framed mode. Support internal clock, E1 recovery clock or V.35 line clock Provide local, diagnostic and remote loop back test. For E1 interface, 75 ohm (unbalanced) and 120 ohm (balanced) available and auto-negotiation. For V.35 interface, DCE and DTE mode are optional Comprehensive LED indicators on front panel, convenient for the diagnosis of equipment working state
