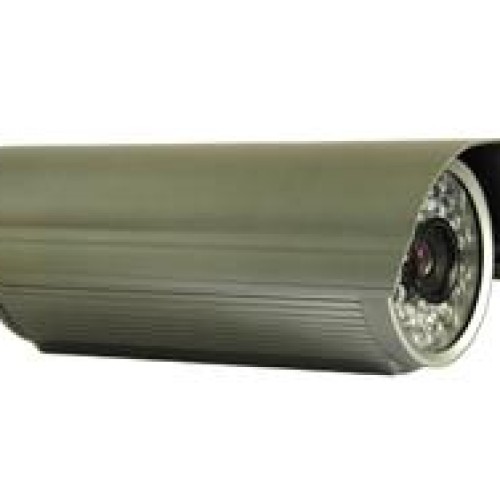

Product Description

Platform management: Works well with DVP, achieves the goal to build a central monitoring system. ?HD resolution surveillance: Video images up to 1280*720 / 30fps resolution, dual code stream supported; Multiple resolution options: 1600*1200, 1280*720, 720*576, 640*480, etc.; 2M pixels image captured. ?High integration: Deploy the high performance multimedia communication processor, so as to achieve fair stability and reliability; Imaging devices apply a 2M pixels CMOS image sensor; 2A embedded image processing algorithms to provide high-quality images: auto white balance, auto exposure control, auto gain control; Support advanced H.264 compression standard, low-bandwidth occupied; Multi-protocol supported: TCP / IP, HT TP, UDP, FTP, RTP; With built-in Web server, authorized users can remotely manage, watch and record videos or else. ?Various external interfaces: Auto Iris: Support DC drive or video drive auto Iris lens; Ethernet: 10/100Mbps auto-negotiation; Analog Video Output: CVBS output with BNC connector; Communication: 1 channel RS485 interface; Alarm: 1-ch Alarm input and 1-ch alarm output available; Power supply: DC +12 V, or POE (Power over Ethernet); Lens: CS Mount ?Others: Supports online smooth software upgrade; Adjustable contrast, brightness, color, saturation and other image parameters; OSD: Supports time superposition; Built-in clock, supports synchronization from external; Minimum illumination: 0.5 Lux/ F 1.2 (Color); 0Lux when IR on Power consumption: =8W.
