Product Description

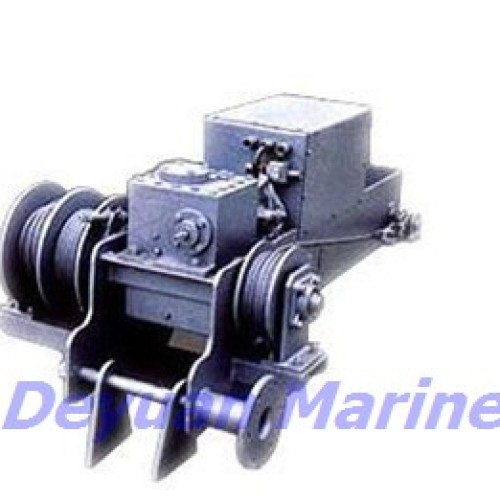

Mainly used for handing accommodation ladders upon the berthing of the vessel as well as handling the pilot ladders when the vessels enter the harbor.The winches are categorized in five specifications:6KN,8KN,10KN,12KN,16KN
Model
Working load(kn) Supporting load(kn) Rope dia power Rotate speed
(r/min) Duty factor Hoisting speed
6KN 18kn Φ8 380v,50hz 1.5kw 1350
30min
6m/min
440v,60hz 1.8kw 1665
8KN 24kn Φ9 380v,50hz 2.2kw 1315
440v,60hz 2.5kw 1625
10KN 30kn Φ11 380v,50hz 3.7kw 1350
440v,60hz 4.0kw 1670
12KN 36kn Φ12 380v,50hz 3.7kw 1350
440v,60hz 4.0kw 1670
16KN 48kn Φ13 380v,50hz 5.5kw 1350
440v,60hz 6.3kw 1655
Company Profile
| |
Business Type: |
Marine water treatment plant, marine life saving equipment, marine fire fighting equipment, marine mooring equipment, bow thruster, FIFI system |
| |
Comapany: |
China deyuan marine fitting co.,ltd |
| |
Year of Establishment: |
2010 |
| |
Address: |
No9-8 Xintai building,Shapingba District |
| |
City: |
Chongqing |
| |
Zip/Postal: |
400060 |
| |
State: |
Chongqing |
| |
Country: |
China |
CHINA DEYUAN MARINE FITTING COMPANY LIMITED is one of the leading and trusted supplier of marine equipment and offshore equipment in China.
We do export business globally in the market for many years and have our owned shareholding factory,also establish good business relationship with other factories with high quality products,competitive price.
Our products include:
Marine life saving equipment: (immersion suit,life boat,inflatable boat,life raft,life jacket,life jacket light etc)
Marine fire fighting equipment:(FIFI system,SCBA,EEBD,fire suit,heat insulation suit,fire extinguisher etc)
Environment Protection Equipment:(Oily water separator,sewage treatment plant,fresh water generator,UV-sterilizer etc)
Marine Mooring Equipment:(marine anchor,anchor chain etc)
Marine Power&Propulsion Equipment:(Tunnel thruster,marine propeller,marine shaft etc)
Marine Deck Equipment:(Marine Windlass,Marine Winch,Marine Davit)
Marine Diesel engine:(CUMMINS Diesel engine,Weichai diesel engine,Deutz diesel engine)
These products are SOLAS compliant, approved by different Classification Society,such as ABS,BV,KRNK,GL,LR,RINA,CCS,DNV,IRS
Our product has been sold to all over the world with good quality and competitive price.And we always insist on doing everything sincerely and seriously.Hope to have the great honor to be yr partner forever.
.
