Product Description

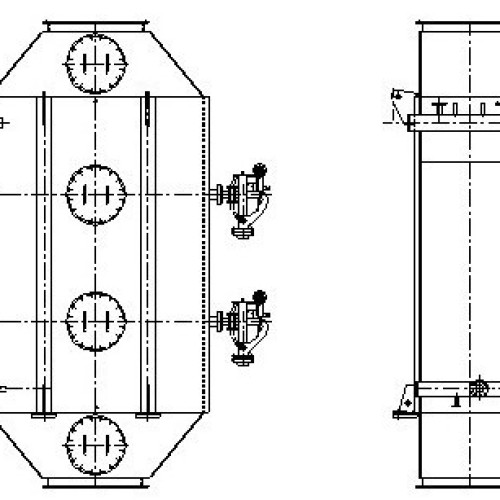

　　combined oil-fired exhaust-gas boiler China Deyuan Marine Fitting Co.,ltd are leading supplier of marine boiler,we have oil-fired boiler,exhaust-gas boiler,oil fired and exhaust gas boiler,hotwater boiler etc.Pls contact us for more details. 　　The basic structure of COB-series Oil-fired exhaust-gas boiler has a natural circulation system with a boiler shell. According to the height between the decks and the way of the host engine discharge the gas, this series boiler can be settled vertically or horizontally. The Oil-fired part and exhaust-gas part can work together or separately. The steam capacity of the Oil-fired part is 0.3t/h~4t/h, the maximal working pressure is 0.7Mpa; the heating surface area of the exhaust-gas part is decided by the discharged smoke of host engine Capacity Heating surface Working pressure Dimension Boil weight T/h m2 Mpa H D D1 D2 D3 kg 0.25 42 0.7 3850 1424 400 250 400 5300 0.3 60 0.7 4050 1424 450 250 500 5500 0.5 70 0.7 4050 1624 450 250 500 6800 0.5 90 0.7 4150 1724 600 250 600 7500 0.5 120 0.7 4300 1860 700 250 700 9000 0.8 90 0.7 4820 1800 600 300 600 8500 0.8 140 0.7 4850 2024 700 300 700 12000 0.9 110 0.7 4820 2024 700 300 700 11000 1.0 90 0.7 4820 1924 600 300 600 9500 2.0 75 0.7 4950 2100 450 350 500 12000 1.0 150 0.7 4750 2224 700 300 700 13000 1.2 130 0.7 4750 2224 700 300 700 13000 1.2 180 0.7 5000 2500 900 300 900 16000 1.6 200 0.7 5000 2400 900 300 900 18000 More types can be offered,pls contact us for more details.
