Product Description
Mainly used for handling accommodation ladders upon the berthing of the vessel as well as handling the pilot ladders when the vessels enter the harbor.The axis of the motor and the reeling drum are laid out perpendicularly.

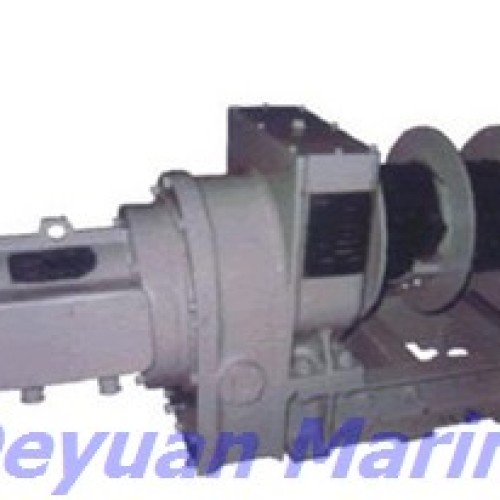

Electric winch
Working load 8~12KN 13~16KN
Supporting load 24~36KN 39~48KN
Rope Dia Φ9~12mm Φ13~15mm
Electric motor 380v,50hz 3.7kw 380v,50hz 5.5KW
440v,60hz 4.0kw 440v,60hz 6.3KW
Duty factor 30min
Hoisting speed 5~10m/min
Pneumatic winch
Working load 8~12KN 13~16KN
Support load 24~36KN 39~48KN
Rope Dia Φ9-12mm Φ13~15mm
Pneumatic motor Power 3.5~5.5ps 7ps
Air consumption 3.5~5.5m3/min 7m3/min
Air press 0.5~0.7Mpa
Hoisting speed 3.5~10m/min
15PPM oily water separator
15ppm bilge alarm/bilge separator
ODM system
fresh water generator
UV-Sterilizer
Re-hardening water filter
marine incinerator
marine sewage treatment plant
Company Profile
| |
Business Type: |
Marine water treatment plant, marine life saving equipment, marine fire fighting equipment, marine mooring equipment, bow thruster, FIFI system |
| |
Comapany: |
China deyuan marine fitting co.,ltd |
| |
Year of Establishment: |
2010 |
| |
Address: |
No9-8 Xintai building,Shapingba District |
| |
City: |
Chongqing |
| |
Zip/Postal: |
400060 |
| |
State: |
Chongqing |
| |
Country: |
China |
CHINA DEYUAN MARINE FITTING COMPANY LIMITED is one of the leading and trusted supplier of marine equipment and offshore equipment in China.
We do export business globally in the market for many years and have our owned shareholding factory,also establish good business relationship with other factories with high quality products,competitive price.
Our products include:
Marine life saving equipment: (immersion suit,life boat,inflatable boat,life raft,life jacket,life jacket light etc)
Marine fire fighting equipment:(FIFI system,SCBA,EEBD,fire suit,heat insulation suit,fire extinguisher etc)
Environment Protection Equipment:(Oily water separator,sewage treatment plant,fresh water generator,UV-sterilizer etc)
Marine Mooring Equipment:(marine anchor,anchor chain etc)
Marine Power&Propulsion Equipment:(Tunnel thruster,marine propeller,marine shaft etc)
Marine Deck Equipment:(Marine Windlass,Marine Winch,Marine Davit)
Marine Diesel engine:(CUMMINS Diesel engine,Weichai diesel engine,Deutz diesel engine)
These products are SOLAS compliant, approved by different Classification Society,such as ABS,BV,KRNK,GL,LR,RINA,CCS,DNV,IRS
Our product has been sold to all over the world with good quality and competitive price.And we always insist on doing everything sincerely and seriously.Hope to have the great honor to be yr partner forever.
.
