| Model NO.: | Cbb65 ac motor capacitor70015 |
|---|
| Customization: | Available Customized Request |
|---|

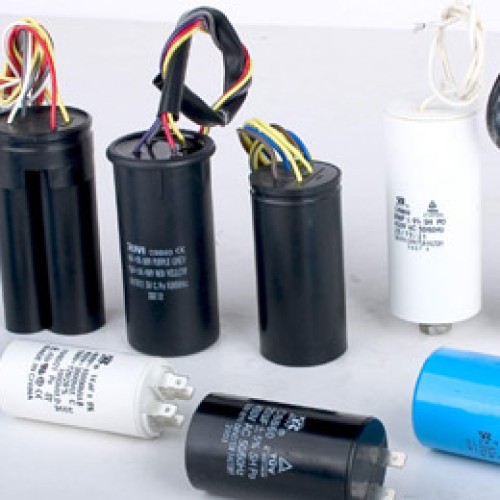

Type CBB65-1 Metallized polypropylene Capacitor Type CBB65-1 Capacitor is using for triggering and operation of single phase mater with 50Hz(60Hz),which is Supplyed by alternating electricity source, such as air-conditioning. Metallic Ralogen lamp. The products is blast proof. Technical Specification: 1.Ambient Temperature: -40~+70¿ 2.Rated Voltage: 250V.AC;400V.AC; 450V.AC 3.Test Voltage: T-T:1.75Un T:2S T-C:2000V.AC T:10S 4.Capacitance Tolerance: ±5%,±10% 5.Insulation Resistance: T-T=3000MO·µF T-C=1000MO 6.Dissipation Factor: tgd=0.004(50Hz) 7.Standard: GB3667-97 IEC252-92
