| Model NO.: | Cbb61 ac motor capacitor70013 |
|---|
| Customization: | Available Customized Request |
|---|

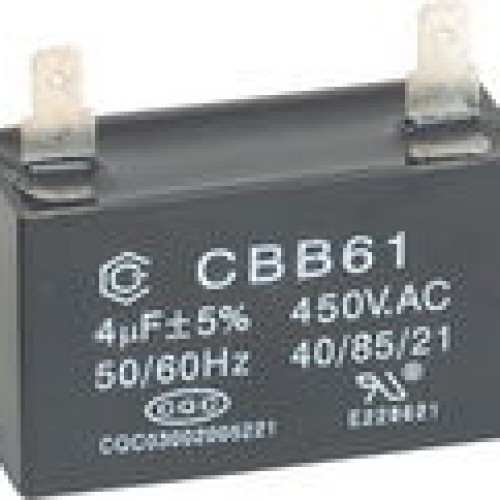

Type CBB61 Metallized polypropylene Capacitor Type CBB61 Capacitor is using for triggering and operation of single phase mater with 50Hz or 60Hz frequency which can continuons work in rated condition. Technical Specification: 1.Ambient Temperature: -40~+70¿ 2.Rated Voltage: 250V.AC;400V.AC; 450V.AC 3.Test Voltage: T-T:1.75Un T:2S T-C:2000V.AC T:10S 4.Capacitance Tolerance: ±5%,±10% 5.Insulation Resistance: T-T=3000MO·µF T-C=1000MO 6.Dissipation Factor: tgd=0.004(50Hz) 7.Standard: GB3667-97 IEC252-92
