| Model NO.: | 3-12mm slitting line2879 |
|---|
| Customization: | Available Customized Request |
|---|

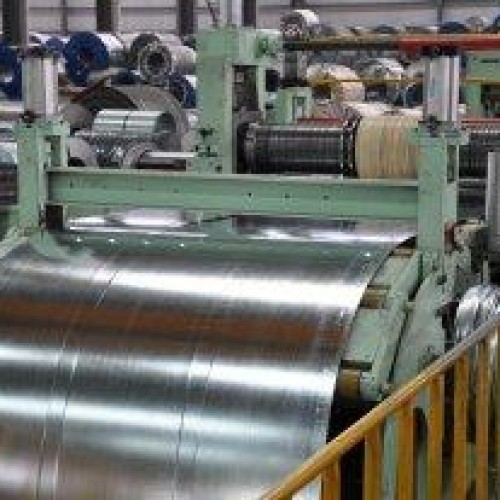

We produce series of Slitting Line for CR, HR, galvanized coil. We offer high quality machine with competitive price 3-12mm Slitting Line Components It mainly includes coil car, uncoiler, shearer, adjusting device, slitting machine, scrap recoiler, tension unit, press unit, recoiler and coil car, hydraulic system, ect. Technical Parameters 1. slitting material:hot rolled coil, cold rolled coil, stainless steel 2. thickness: 3 - 12mm; 3. width: 600-2000mm; 4. slitted tolerance(width): ±0.10mm; 5. speed: 0 - 40m/min; 6. de-coiler capacity: max. 35T; 7. coil inner diameter : F500mm-F800mm 8. coil out diameter: =F2100mm; 9. re-coiler diamter: F760mm; 10. electrical resource: 380V, 3 phase, 50Hz; or up to the customers requirements. 11. PLC control system, touch screen, etc.
