| Model NO.: | 0.2-1mm slitting line817 |
|---|
| Customization: | Available Customized Request |
|---|

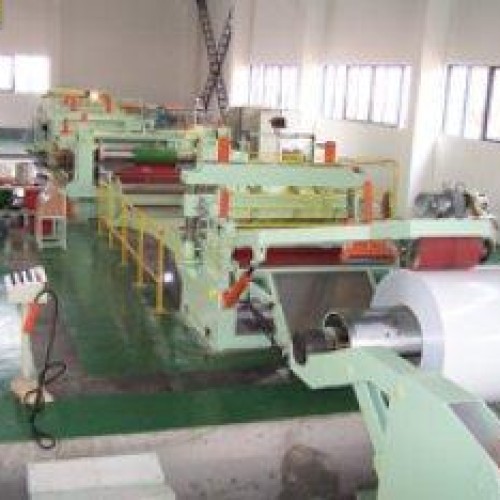

0.2-1mm Slitting Line, suitable for hot/cold rolled coil, galvanized steel, carbon steel. 0.2-1mm Slitting Line Coil basic data 1. Material: Hot/cold rolled coil, etc 2. Thickness: 0.2-1mm 3. Width: 400-2000mm 4. Inner diameter: 508mm 5. Max outer diameter: 1800mm 6. Capacity: 15T(depends on client's demand) Main data 1. Standard power source: AC380V/50Hz 2. Work speed: 0-100m/min 3. Main power: About 80KW 4. Machine outline (L*W): About 15MX8M(including Safety Area) 5. Installation height: About 2M 6. Total weight: About 35tons 7. Operators for the machine: 2-3 workers 8. Paint of the machine: Main body in green, moveable units and danger area in yellow (or according to Buyer's demands) 9. Running direction (decoiling direction): Depends on Buyer's requiremen Work Flow Feeding trolley---hydraulic single-load un-coiler--- feeding unit--- plate head cutter--- rectification unit--- slitting cutter---scrap re-coiler---loop--- pre-distribution & tensioning machine--- rewinding machine--- unloading trolley--- hydraulic & electric control
