Product Description
Specification
- - - -
Dimension | 35(l)*35(W)*4(H)mm |
LED No | 4 pcs 3528 SMD LED Beam angle 150Degree |
Voltage | Input DC12V |
Current | 30mA | 30mA | 30mA | 30mA | 30mA |
Watts | 0.48 | 0.48 | 0.48 | 0.72 | 0.72 |
Lumen | 18~28 | 18~28 | 18~28 | 16~22 | 16~22 |
Color | White | Blue | Green | Yellow | Red |
IP | IP68 The PCB be covered by resin. |
Net Weight(g) | 10g/pc.200g/20pcs |
Part No | REX35-4W 3528 | REX35-4B 3528 | REX35-4G 3528 | REX35-4Y 3528 | REX35-4R 3528 |
- - - -
Application:
1. Electronic signs 2. Commercial advertising signs 3. Channel letters 4. LED light strips 5. Automotive lighting 6. Festival decoration 7. Advertisement light-box
8. Accent lighting

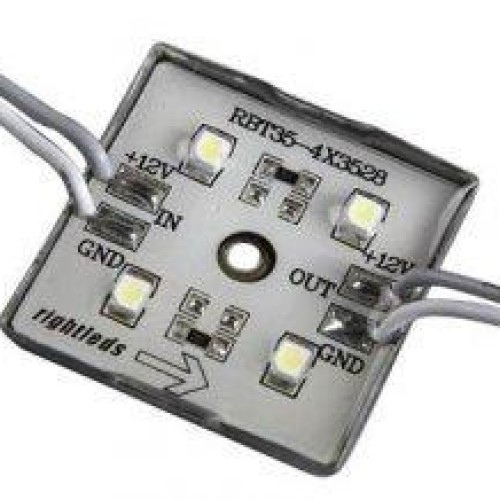

Item Number: REX35-4X(X-White/red/blue/green/yellow)
Judged against the performance of standard neon or fluorescent lamps, REXLEDs 4 SMD LEDs Waterproof LED Modules (REX35-4X3528 Series) are ideal for signage channel letters compacts spaces,which provide significant energy cost reductions(less 40%than neon), easier jobsite installation(splice connector or twist-on wire connector and 3M double-faced sticking tape), free maintenance and more consistent brightness
Features
·High Brightness REXLEDs 4 SMD LEDs waterproof Module adopts 4pcs 3-chip SMD LEDs as its luminous body in high intensity and can emit higher brightness at lower cost. Bigger chip in LED. No spot. No shadow
·Excellent heat dissipation REXLEDs 4 SMD LEDs waterproof Module house inside aluminum crust with excellent heat dissipation. ·Easy Installation REXLEDs 4 SMD LEDs waterproof Module can be easily installe with 3M double-sided sticking tape and connectors. ·Extended Life With little heat, proper drive characteristics and high quality LEDs, REXLEDs 4 SMD LEDs waterproof Module have a life time of more than 50, 000 hours. ·Totally waterproof With IP68 protection degree, REXLEDs 4 SMD LEDs waterproof Module can operate normally in cloudy, rainy, desert, and snowy weather conditions and pool. The SMD LEDs are totally covered by resin. ·Friendly environment Pb free. With CE/RoHS/SGS certificate, REXLEDs 4 SMD LEDs waterproof Modules are up to 60% more energy efficient than neon. ·Safe Application Low voltage DC12V, safety and stable. Free maintenance
