Product Description
Specification
- - - -
Dimension | 78(l)*13(W)*4(H)mm |
LED No | 3 pcs 3528 SMD LED Beam angle150Degree |
Voltage | Input DC12V |
Current | 20mA | 20mA | 20mA | 30mA | 30mA |
Watts | 0.24 | 0.24 | 0.24 | 0.36 | 0.36 |
Lumen | 12~15 | 6~7.5 | 12~15. | 6~7.5 | 6~7.5 |
Color | White | Blue | Green | Yellow | Red |
IP | IP68 The PCB be covered by resin. |
Net Weight(g) | 5g/pc.50g/20pcs |
Part No | REX7813-3W 3528 | REX7813-3B 3528 | REX7813-3G 3528 | REX7813-3Y 3528 | REX7813-3R 3528 |
- - - -
Application:
? Small channel letter ? Small signage
? Mini light box

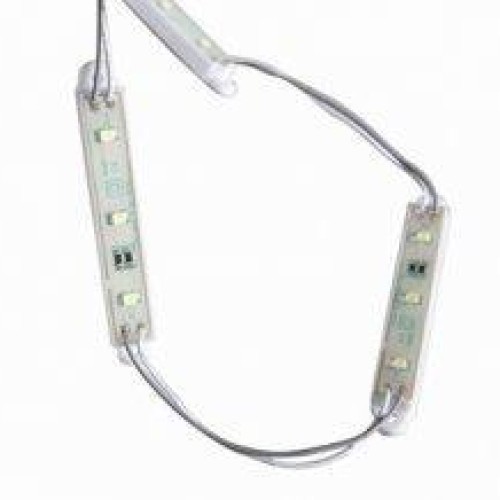

Item Number: REX7813-3X3528
(X-White/red/blue/green/yellow)
Judged against the performance of standard neon or fluorescent lamps, REXLEDs SMD LEDs Waterproof LED Modules (REX7813-3X3528 Series) are ideal for small signage channel letters compacts spaces,which provide significant energy cost reductions(less 40%than neon), easier jobsite installation(splice connector or twist-on wire connector and 3M double-faced sticking tape), free maintenance and more consistent brightness.
Features
1. Comparable visual impact to Neon 2. IP68 rated for outdoor use and completely sealed to be environmentally robust 3. Small and flexible to fit into small and hard-to-illuminate spaces Simple, fast and reliable installation 4. Longer useful life - potential to exceed 5 years of useful life 5. Available in 5 colors: Red, green, blue, amber and white 6. Safe operation: 12V DC voltage source and non-flammable material 7. Reduced energy consumption, actually consumes 40% less power compare to similar neon system. 8. Operating temperature range of -20Degree to 65Degree 9. Two year warranty for Economy version
