Product Description

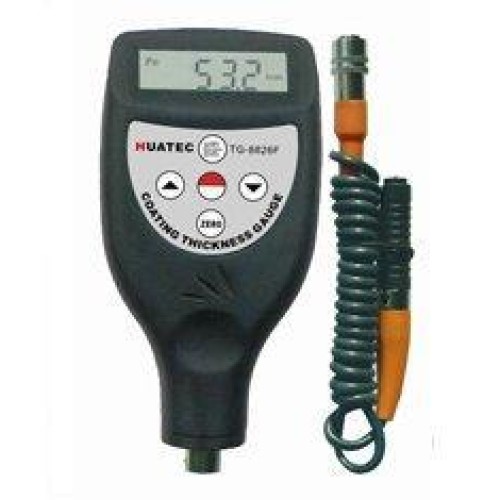

Description: With separate probe(s) Function: TG-8826F (ferrous substrate) TG-8826N (non ferrous substrate) TG-8826FN (2 in 1, F & NF type) Operating principle: magnetic induction/eddy current (F/NF) Measuring range:0-1250um/0-50mil Resolution; 0.1/1 Accuracy: ±1-3%n or ±2.5um Min. measuring area: 6mm Min. sample thickness: 0.3mm Battery indicator: low battery indicator Metric/ imperial: convertible Power supply: 4x1.5V AAA(UM-4)battery Auto power off                 Operating conditions:0-+45?(32?-104?), =90%RH Dimensions: 126x65x27mm weight: 81g(not including battery) Optional accessories: other range 0-200um to 15000um Application:  1. TG-8826F can measure the thickness of non-magnetic coating layers (aluminum, chrome, copper, ename1, rubber, paint) on magnetic substrate (steel, iron, alloy and magnetic stainless steel)  2. TG-8826N can measure the thickness of non-conductive coating layers (ename1, rubber, paint, vanish, plastic anodic oxide layer) covered on non-ferrous substrate (aluminum, brass, zinc, tin and non-magnetic stainless steel)   Standard Delivery of TG8826FN: Main unit(1000um)                        1 F type probe                                 1 N type probe                                 1 F calibration base set                   1 N calibration base set                   1 Calibration foil set                         1set (4 foils) Carrying case                               1 Instruction manual                       1 Optional Accessories Cable and software for RS-232C Customized testing range
