Product Description

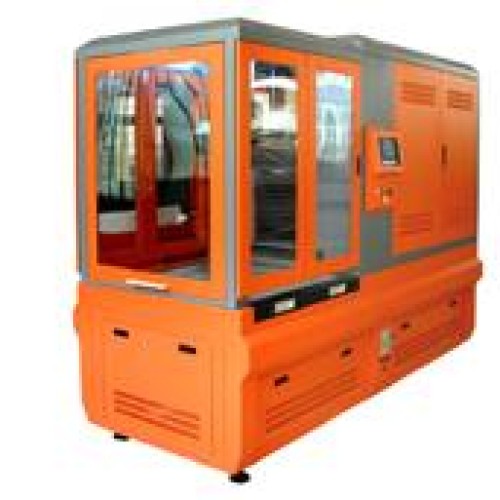

Product Feature Adopt world advanced 3D dynamic large area galvanometer controlling system, realize super large area galvanometer engraving and punching in garment industry. This system can high speed engrave and punching in 600mm×600mm area, equipped with red light and Z axis up and down system. It is possible to select the most small spot size, beam strength, most accurate position to process according to working area. Application Field Suitable for cowboy?knitting?wool?suede and such textile garment fabric or big size engraving on the surface of home furnishings, suitable for cutting ?hollowing of all kinds of textile garment fabric. Technical Parameter Laser type CO2 RF Metal laser tube Laser power 70W 100W 150W Optional Working area 250mm×250mm- 600mm×600mm for choice Cutting(no-load)speed 0-48000mm/min Positioning accuracy ±0.1mm Moving system LCD display,dynamic offline control system Power supply 220V±5% 50Hz Format support AI?BMP?PLT?DXF?DST etc Standard collocation 1100W exhaust, red cross light location system, laser chiller
