Product Description

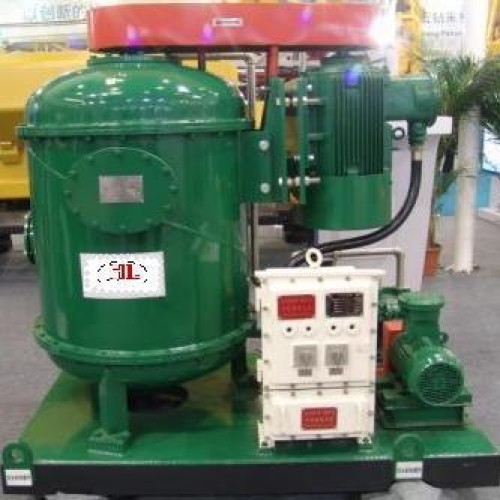

ZCQ series Vacuum Degasser is a special device for treating gas impregnated drilling fluid. It is a new degasser developed by the company on the basis of various domestic and foreign degasser, suitable for all kinds of mud purification system and enjoying an important role in recovering mud proportion. ZCQ series Vacuum Degasser Technical Parameters Model ZCQ240 ZCQ270 ZCQ300 ZCQ360 Main diameter 700mm 800mm 900mm 1000mm Capacity =240m3/h =270m3/h =300m3/h =360m3/h Vacuum 0.030~0.045Mpa 0.030~0.050Mpa 0.030~0.055Mpa 0.040~0.065Mpa Ratio 1.68 1.68 1.68 1.72 Efficiency =95% =95% =95% =95% Motor power 15KW 22KW 30KW 37KW Vacuum Power 2.2KW 3KW 4KW 7.5KW Rotary speed 860r/min 870r/min 876r/min 880r/min Dimension 1750×860×1500mm 2000×1000×1670mm 2250×1330×1650mm 2400×1500×1850mm Weight 1100kg 1350kg 1650kg 1800kg
