| Model NO.: | Top mounted float operated level transmitter60303 |
|---|---|
| Packaging Qty: | Wooden cage with paper sheets |
| Min. Order (MOQ): | 50 |
| Manufacure Name: | Flowtech |
| Customization: | Available Customized Request |
|---|

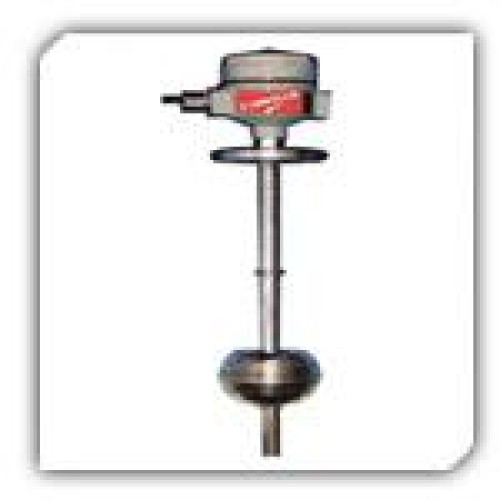

FLOWTECH make Top Mounted Float Operated Level Transmitters or Level Transducers are used to measure the level of a liquid or bulk solid material (as well as slurries) within a specified space, and to provide electrical output about these measurements that are proportional to the input level. Level transmitters are designed to measure level based on either a point level or continuous level readings. Point level transmitters provide output when a specific level measurement is reached. This output is generally in the form of an audible alarm or an electrical charge to actuate a switch. Multiple point level transmitters can be integrated together to give a stepped version of continuous level. Continuous level transmitters, measures level within a specified range and provide output as a continuous reading of the level. Level transmitters can operate through a wide range of temperatures, pressure, vapour gas mixtures, and process conditions. In our level transmitter, float & guide tube (Stem) assembly in non-magnetic material. Number of closely spaced glass encapsulated reed switches & resistors are placed inside the guide tube. Now when the liquid level goes ups and down in the tank, the float moves on guide tube (stem) actuates a reed switches, through a magnet system within it and develops a proportional voltage. The operation is similar to a sliding resistance potentiometer. The sensed voltage is fed to the transmitter located in the enclosure for conversion to a signal of 4-20 mA, for use with PLC / DCS or Level Indicating Controllers.
