| Model NO.: | Glass miter edging machine28231 |
|---|---|
| Packaging Qty: | Wooden case |
| Manufacure Name: | Sager tec |
| Customization: | Available Customized Request |
|---|

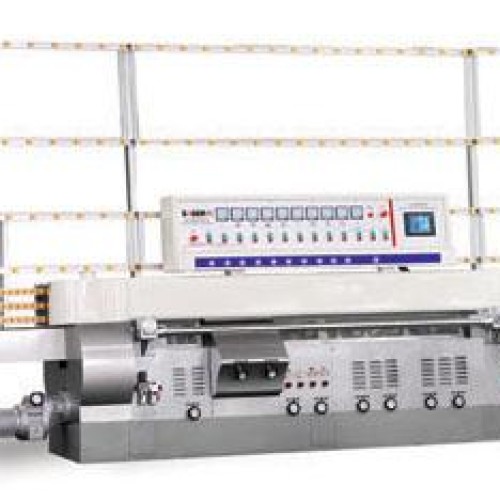

SZ-DJB9 Glass Miter Edging Machine is able to grind and polish the miter angle on glass, with side edging & polishing and rear seaming, all above process can be worked on same time. The control system applied with Mitsubishi PLC control unit. Input and output conveyor adopt timing belt which can improve the transmission precision. The processed glass surface is very bright and smooth, approaching the original glass surface. Mini. Size: 80*80mm Glass Thickness: 3-28mm Angle: 0-60° Processing Speed: 0.75-3.65m/min Installed Power: 20. 3KW No.of spindle: 9pcs Dimension: 7800*1400*2550mm Weight: 3500kg
