Product Description

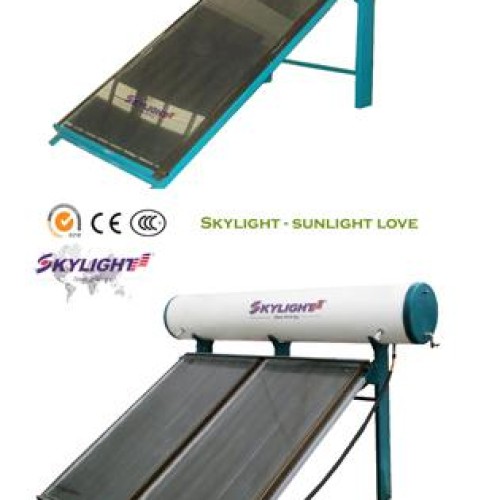

Components: Skylight Solar flat plate collector, solar storage tank and frame Skylight Tank and Frame Specifications: 1) Volume: 150L, 200L, 300L 2) Inner tank material and thickness: SUS304 2B /0.5mm 3) Outer shell material and thickness: Color steel/0.45mm 4) Insulation material and thickness: CFC free Polyurethane/55mm 5) Frame material and thickness: Galvanized steel /1.5mm 6) Size of the holes: G1/2 OR G3/4 7) Electrical heater: Available against request, 1500W or 2000W 8) Magnesium rod: Available against request 9) Assistant tank: Available against request: Dia. 160mm*220mm (6L), 8L, 10L, 30L, 50L, double tank. 10) Controller: Available against request: SP26 SR500 SR609 11) Guarantee: 5 years for galvanized steel support, 5 years for solar storage tank and Flat plate collector Skylight Flat Plate Collector Technical Parameter 1. Sky/light Dimension (L*W*H) mm: 2000*1060*70/ 2000*1060*80/ 2000*1060*90 2. Skylight Core: all copper, ultrasonic welding 3. Skylight Coating: black chrome/ Blue titanium 4. Skylight Absorber material &thickness: copper, 0.15mm 5. Sky*light Header pipe material, dimension and quantity: copper T2; F25*0.6*1060mm; 2pcs 6. Skylight Riser pipe material, dimension and quantity: copper T2; F10*0.5/F12*0.6mm; 8pcs 7. Skylight Material & thickness of glass: tempered glass: 4mm /fabric tempered glass: 4mm/low iron fabric tempered glass: 3.2 8. Sky*light Material & thickness of frame: aluminum, 0.8mm 9. Skylight Insulation of material: high pressure high density polyurethane foam 10. Skylight Insulation thickness mm: 30 11. Sky+light Material & thickness of the back sheet: embossed aluminum, 0.3mm 12. Skylight Packing: carton 13. Sky-light Packing dimension (two pieces in one carton): 2020*1100*160/ 2020*1100*180/ 2020*1100*200 14. Sky-light Net weight: 32kg/33kg/35kg 15. Sky=light Qty of 20' container: 165/145/130pcs 16. Sky*light Qty of 40' container: 340/306/276pcs 17. Sky-light Qty of 40H' container: 390/346/306pcs
