Product Description

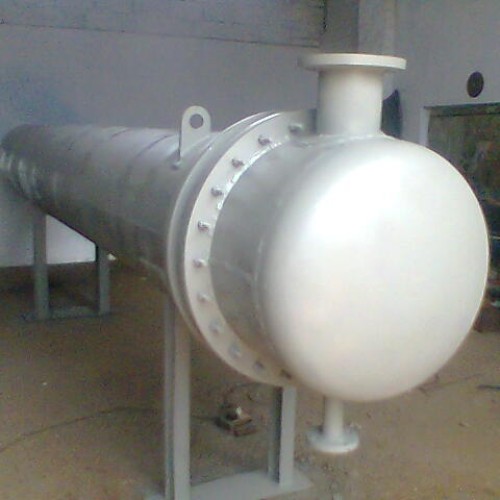

The Shell and Tube (U-tube) is the most common type of heat exchanger used in the process, petroleum, chemical and HVAC industries, it contains a number of parallel U tubes inside a shell. Shell Tube heat exchangers are used when a process requires large amounts of fluid to be heated or cooled. Due to their design, shell tube heat exchangers offer a large heat transfer area and provide high heat transfer efficiency. ATE Shell and Tube Heat Exchangers are designed to meet various process requirements. Shell and Tube heat exchangers can provide steady heat transfer by utilizing multiple passes of one or both fluids. ATE shell and tube heat exchangers come in two (2) and four (4) pass models standard, and multi-pass custom models. Shell and Tube heat exchangers use baffles on the shell-side fluid to accomplished mixing or turbulence. Design Code: IS-4503, IS-2825, AMSE SEC. VIII, TEMA Type : Fixed Tube Sheet, Removable tube Bundle, U-Tube, Coil in Tank, double Pipe CapacityRange : As per client's requirement. Shell Diameter : 2" to 125" Tube Length : 2' to 40' Tubes : Plain, Finned or U-Tube M.O.C. Tubes : Carbon Steel, Stainless Steel, Copper, Adm. Brass, Aluminium, Titanium, Tantalum, Hastolloy, Alluminium Bronze, monel, Duplex, Cupronickle. M.O.C Shell : Carbon Steel, Stainless Steel, Copper, Monel. Brass, Aluminium Channels : Carbon Steel, Stainless Steel, Gun Metal, Cast Iron, Brass, Cast Aluminium
