| Model NO.: | Rbbh |
|---|
| Customization: | Available Customized Request |
|---|

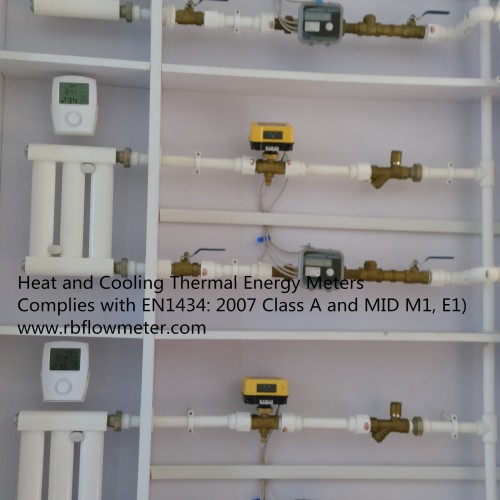

RBBH Thermal Heat Energy Meters with MID Class 2 Approved ultrasonic thermal energy meter is designed to accurately record the billing data in a heating circuit or a cooling and heating circuit. It is EN 1434 approved, and was the first meter to be approved in Europe with a dynamic range of 1:250 in Class 2. FEATURES ï¬ High capacity 3.6V lithium battery inside ï¬ Dynamic range of 250:1 ï¬ Unique design for calculator can be adjusted within 0°～120°in vertical and can be rotated within 0°～350°in horizontal, convenient to read data from different direction ï¬ Can be mounted in flow pipe or in return pipe, and can be mounted in horizontal and vertical ï¬ Calming selection not necessary for DN15-DN25 ï¬ Complies with EN1434: 2007 Class A and MID M1, E1 ï¬ Available with photoelectric interface, RS485 or M-BUS output interface, Standard EN13757 Protocol, available in remote reading(AMR), and easy for central control and management ï¬ MID Certification No.DE-13-M1004-PTB010 ï¬ Complies with NOWA
