Product Description

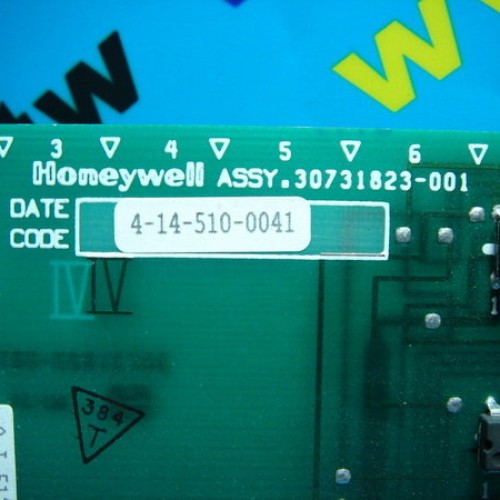

his A/D Converter & Multiplexer card is used in the Basic Controller, Extended Controller, and Multifunction Controller. It accepts 16 analog inputs of 1 to 5 volts and converts them to 12-bit digital words for use by the CPU. Test points and potentiometers are present on the card edge to be used during calibration and adjustment.
Adjustments
Location Description
R1 Low test V adjustment
TP1 Low test V equal to 1.000 VDC
referenced to A/D sense line
R2 High test V adjustment
TP2 High test V equal to 5.000 VDC
referenced to A/D sense line
TP3 Internal test for A/D converter, is equal
to 5.000 VDC, referenced to common
R3 Internal span voltage adjustment
TP4 Internal span voltage for A/D converter,
equal to 9.550 VDC, referenced to common
TP5 A/D sense line, same as signal common
TP6 Power supply common (PSC)
TP7 Internal zero voltage converter, equal to
3.430 VDC, referenced to common
R4 Internal zero voltage adjustment
R5 Internal reference voltage adjustment
