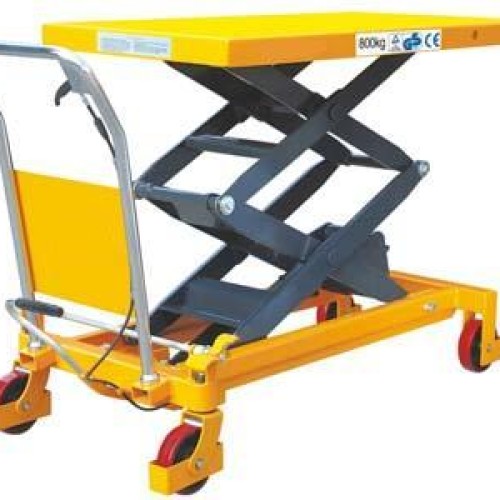

| Model NO.: | Scissor lift table 54217 |
|---|---|
| Manufacure Name: | Patel hydraulic lifters |
| Customization: | Available Customized Request |
|---|
Capacity kg 800 Max. lift height h12 (mm) 1500 Min. height of table h13 (mm) 475 Lifting height h3 (mm) 1025 Table size lxb5xs(mm) 1220x610x60 total height h14(mm) 962 Overall length l1 (mm) 1375 Foot pedal cycles to max height =70 Wheel diameter d (mm) 150 Qty. / 20' Container PCS 48 Weight kg 172 Carton size mm 1400x730x500
