| Model NO.: | Pvdf aluminium composite panel (alucobond)45780 |
|---|
| Customization: | Available Customized Request |
|---|

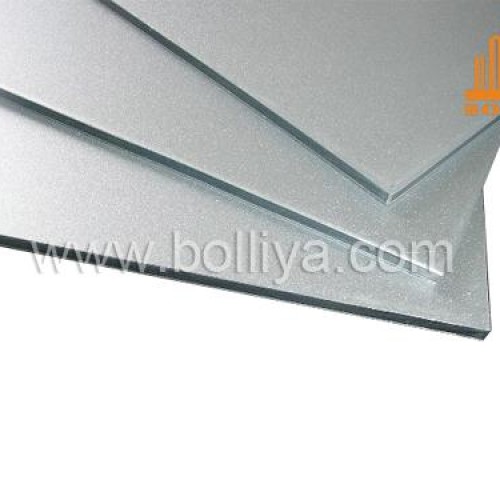

Product Description Aluminium Composite Panel is also called alumium composite panel, aluminium panel or ACM, ACP. Our aluminum composite panel covers 4 series: PVDF alumium composite panel, PE alumium composite panel, Anodized surface alumium composite panel, wood & stone alumium composite panel. It's a very good decorative material among the construction materials. It's widely used in wall cladding, curtain wall cladding, facade cladding. Aluminium Composite Panel For Wall Cladding PF series 1, Painting: A) Front side painted with PVDF(Flurocarben Powder >70%, Kynar 500) B) Reverse side painted with Polyester service painting. 2, Aluminium Coils A) Alloy 1100 H18 or 3003 H24. B) Thickness 0.08, 0.12, 0.15, 0.21, 0.30, 0.35, 0.40, 0.45, 0.50mm 3, Core Material A) Thermal-plastic polythelene core B) Firerated, B1 core. Mineral core. 4, Size and Dimension A) Thickness: 3mm, 4mm, 5mm and 6mm B) Width: 1220mm, 1250mm, 1500mm up to 1560mm C) Length: Up to customer's request, maximum 5800mm. 5, Characteristics: A) Impact resistant, light weight and easy to process B) Outstanding weatherproof and fireproof properties C) Easy to maintain D) High peeling strength, >10N/cm Thanks again for being interested in our Aluminum Composite Panel (ACM, ACP).
