Product Description

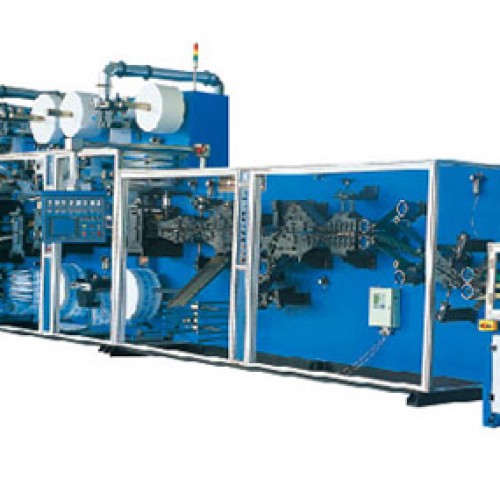

I. Introduction Model name: DC-BD-450 This machine is used to produce baby diapers as the picture shown above. II. Main Parameters Product size: S, M, L, XL Design speed: 450pcs/min Production speed: 300-450pcs/min Approx. machine dimensions: 28m (L)× 6m(W) ×3.2m (H) Power supply: About 170KW Machine weight: About 40T Main motor Configuration Servo motor quantity: 7 Fluff Pulp crusher motor: 30KW Main motor: 30KW Model wheel wind motor: 55KW Main wind motor: 7.5KW III. Main Parts Brands Sensor SUNX or OMRON (JAPAN) PLC Interface control system Servo system Servo motor MITSUBISHI (JAPAN) Low voltage parts Air switch AC contactor Thermo Relay SCHNEIDER (GERMANY) Bearing for mill SKF (SWEDEN) Main bearing NTN or NSK (JAPAN) Pneumatic Cylinder Magnetic valve AIRTAC (TAIWAN) Flat belt HABASIT (SWITZERLAND) Timing belt GATES (USA) IV. Technical Parameters Product Size：M size: 455mm×330mm Production Speed： 300-450pcs/min （M SIZE） The qualified rate of the products reaches 98％(excluding the waste and unqualified products caused by material splicing and glue applicator) Machine operation rate： 85% Power source： 380V±5％，50Hz Three phase, four lines + Earth Connection Power Consumption： 185KW V. Export Details 1. Delivery time: 60 days (It takes time to ensure the processing precision, assembling precision, etc. Of course, the delivery time can be discussed as the case may be.) 2. Load port: Xiamen port in Fujian Province 3. Packing: In standard export wooden cases 4. Container: 1 x 20 feet container，3 x 40 feet containers (It depends on the quantity of the machines you buy ). 5. Machine installation and operation training: The seller should dispatch professional technicians and engineers to buyer’s plant to install the machine and train the workers. The round air ticket, accommodation and salary should be paid by buyer. 6. Warranty period: One year(Except easy damaged parts), and will provide long term services including providing spare parts at low price and will heart and soul help the buyer to solve any problem may occur. 7. Our company also provides the raw material to match with the machine
