| Model NO.: | Ptc heater80393 |
|---|---|
| Min. Order (MOQ): | 1 |
| Customization: | Available Customized Request |
|---|

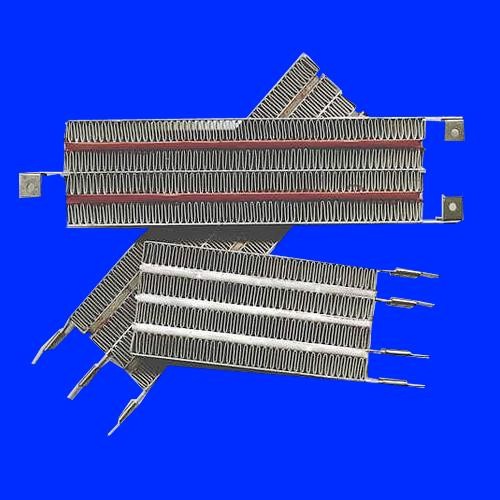

PTC components are glued with wave aluminum tube by heating. It highlights in small thermal resistance, fast warming-up and long life length. MZFR-D series can be applied to window air conditioner, bathroom warmer, washing machine, sterilizer, heating apparatus and vehicle devices. Usually we provide customized solutions. Main parameters: Item Parameters Rated voltage (V) 110,220,380 Rated frequency (Hz) 50(60Hz) Range of length (mm) 80~500 Power range (W) 500~3000 Tolerance of power (%) +5~-10 Max initial current (A) =1.5 Ie Withstand voltage (V) 450 Power decay rate (%) =10%/1000h Max surface temperature (?) 270 Normal type: Type Power(W) Size(mm) Applications MZFR-D1012 1000W 122x44x15 Window air condition MZFR-D1215 1200W 148x44x15 Window air condition MZFR-D1210 1200W 97x65x15 Bathroom warmer MZFR-D2415 2400W 151x83x15 Bathroom warmer MZFR-D1215 1200W 148x44x15 Washing machine MZFR-D0410 400W 97x22.5x15 sterilizer MZFR-D2018 2000W 182x65x15 Heating apparatus MZFR-D2011 2000W 110x108x15 Heating apparatus MZFR-D2535 2500W 350x60x15 Vehicle
