Product Description

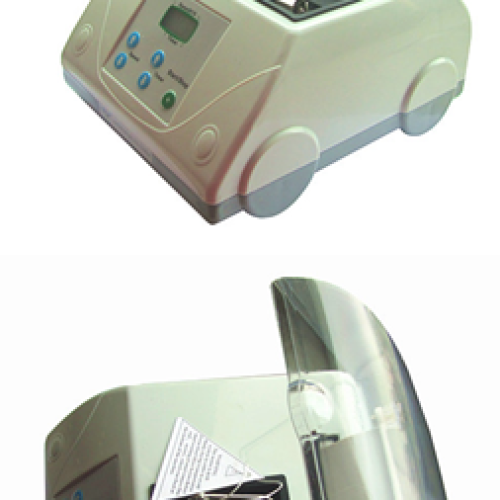

it is a mini sized homogenizer ideal for the disruption of samples in 2.0ml screw cap microtubes. The unique design of the tube holder allows for three tubes to be inserted per mixing cycle. I. Product Specifications: Speed / Control: variable 2800 to 4000 rpm Timer: 3 second to 3 minutes Max. Capacity: 3 x 2.0ml Dimensions (wxdxh): 175x210x135mm, Weight: 2.2kg, 5lb Electrical: 115VAC, 60Hz, 230VAC, 50Hz, (Model D1030-E) CE compliant Operating environment: 4˚ C to 65˚ C; Warranty: 2 years II. Product Set-Up: Place the mixer on a clean, flat, stable surface. Ensure that the power switch is in the OFF position and plug the mixer into a properly grounded outlet. Open the lid and insert your 2.0ml screw cap tubes in the tube holder by placing the conical point through the hole and pushing the tube into place. CAUTION: Always follow proper loading and balancing instructions. III. Product Operation: Using the up and down arrows, select the desired speed and time. Ensure that tubes are fully inserted within the groove of the tube holder and close the lid. Once the lid has been closed, press the “Start/Stop” key to begin the mixing cycle. At the end of the desired run time, open the lid and remove your sample tubes. IV. Care and Maintenance: No routine maintenance is required other that to keep the unit clean and to wipe up and spillage that may occur.
