Product Description

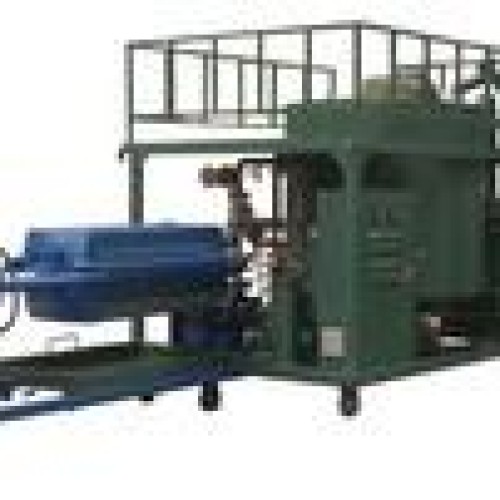

LYE series oil regeneration system mainly treats and regenerates used engine oil and waster motor oil from car, motor, truck, ship, mines, electrical power and so on. It not only removes the impurities, water, and acid matter, organic and inorganic acid effectively, but also can remove carbon particulate matter and peroxides. In gas/diesel engine oil, bitumen and colloid and other sludge can be removed similarly. After treatment by the machines, the color of the treated oil is recovered and the quality indexes are improved too so as to resume the performance of gas/diesel engine oil, to keep the engine in good lubricating conditions, to guarantee lubricating system of gas/diesel engine to work properly and to prolong the service life of gas engine and oil, finally, to economize expense on oil purchasing and save oil resource. Technical specifications of the machine Item Unit LYE-1000 ~ LYE-15,000 (also can be designed to larger models as per request) Flow rate tons/day 1 ~ 15 Rate of Reclamation % 75~95 Working Pressure MPa -0.095~0.4 Range of Temperature Control ? 80~180 Working noise dB(A) =70 Power Supply 380V/3P/50Hz (or as per required) Heating Power KW 192 (for 10 tons/day) Total Power KW 216 (for 10 tons/day) Inlet/outlet Pipe Diameter DN 40 Labors needed --- 2 ~ 3 Dimension (for 10 tons/day) The size is subject to actual machine mm Reaction System 2x560x2100x2300 Filtration System 2x3200x1600x2100 Exhaust Gas Processing System 950x2000x3300 Weight Kg 2000 ~ 7500
