| Model NO.: | Miniature ccd camera40985 |
|---|---|
| Packaging Qty: | Gift box |
| Min. Order (MOQ): | 50 |
| Manufacure Name: | Globalcctvsec |
| Customization: | Available Customized Request |
|---|

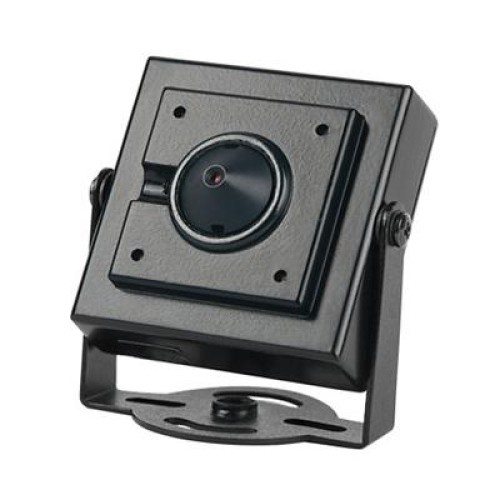

Miniature CCD Camera LJ-M4003 Features Miniature Camera SONY/SHARP Color CCD Back Light Compensation(BLC) Lens: 3.7mm Taper Pinhole Lens (Optional) Dimension :25(W) x 10(H) x 25(D)mm Specifications Model LJ-M4003 LJ-M4004 LJ-P4004 LJ-P4003 System PAL / NTSC Image Sensor 1/3" Sony CCD 1/4" Sony CCD 1/4" SHARP CCD 1/3" SHARP CCD Picture Elements PAL: 752(H) x 582(V); NTSC: 768(H) x 494(V) Video output 1.0Vp-p, 75II Composite, BNC x 1 Horizontal resolution 420TVL 420TVL 420TVL 420TVL S/N Ratio >=48dB Minimum illumination 0.8 Lux 1.0 Lux 1.0 Lux 1.0 Lux Electronic Shutter 1/50 - 1/10,0000S White Balance Auto Gamma Ratio >=0.45 Infrared Spectrum Infrared Sensitive Lens Mount Built-in 3.7mm pinhole Lens Operating Temperature Outdoor: -10C to 50C Humidity 0 to 95% RH (non-condensing) Sync system 2:1 interlace internal Sync. Power supply 12V DC 150mA 12V DC 150mA 12V DC 100mA 12V DC 100mA Weight Appro x 1.25kg Manufacturer Globalcctvsec
