Product Description

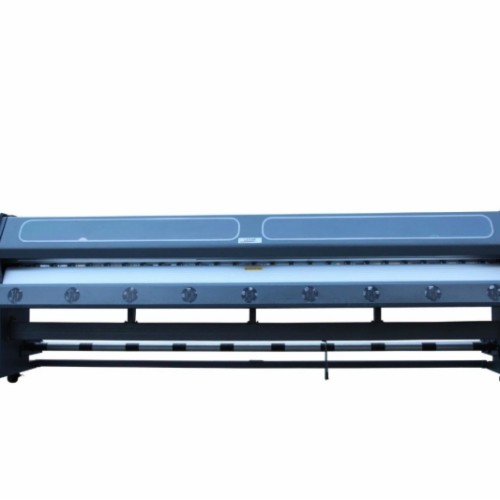

Product Model LD-P3204 Print Technique Spectra POLARIS 512/15pl, Piezoelectric PH,4 heads Resolution Up to 1440 dpi Max media width 3300MM Max printing width 3250MM Min printing width A4 or 210MM Output(m²/h) Mode m²/h(4printheads) Draft 100 Stand 65 High resolution 50 Display LED Display with 8 key panel, self-diagnosis available Ink Type Solvent and Eco-solvent base: C, M, Y, K Ink Supply Type 300ml/min auto ink supply by electric pump volume of main tank 800ml/color Ink Inspection Auto/Manual ink supply, low ink detector Printing Software Pioneer RIP and other drivers Operation Platform Window2000, XP, Vista System Certification CE Mark Media Type Banner flex, vinyl, window film, polyester, etc Media Transmission Roll media or sheet media(more than A4 or 210mm) Media Processing Auto feeding and take-up system(matching),weight less than 50kg Printhead High 2mm to 4mm above media Pre-heater and Dry System 40-55°C,auto-control temperature ,optional Safety System Inside safety lock with auto shutting down function Print interface USB2.0 interface Noise Printing status=70dB/Waiting status=40dB (ISO7779) Printer size/weight 4826mm×906mm×1185mm /340kg Package size/weight 4840mm×960mm×1294mm/ 378kg Power(printer) AC 100 - 240 V, 50HZ/60HZ AC110 and AC220 50HZ/60HZ optional Dryer and Roller power AC220V, 50HZ/60HZ(optional AC 110V) AC220V, 50HZ/60HZ (AC110V Optional) Power dissipation Printer : = 3A Heater : = 4A Working Environment Temperature : 20-28degree Humidity:40%-70%
