| Model NO.: | Insulating glass line/machine33564 |
|---|---|
| Packaging Qty: | In wooden cases |
| Manufacure Name: | Insulating glass machines, pvc windows and doors machine, aluminum windows and doors machines |
| Customization: | Available Customized Request |
|---|

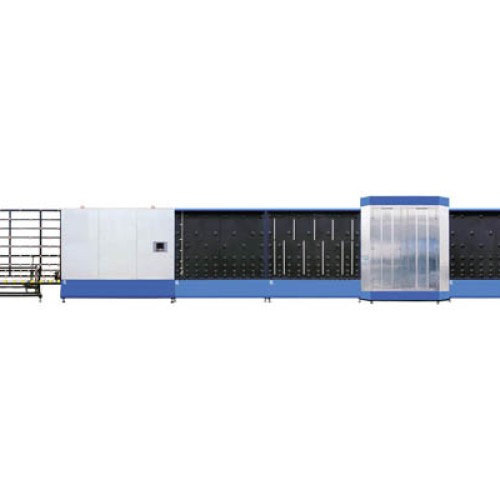

LBZ2500 (P) Vertical Insulating Glass Automatic Flat Press Production Line Functions characteristics Shape glass LOW-E insulating glass production line Automatic control for LOW-E glass (3-brush treatment for LOW-E) Automatic adjust function for pressing with hydraulic compression Titling table with hydraulic pressure Monitor using system temperature/speed/production volume Mechanical trouble cheek Whole line control function with 1 monitor Technique parameter Max. glass size 2500×3000mm Min. glass size 300×500mm Thickness of Washing Glass 3-12mm Max.Insulating Glass Thickness UP TO 50mm Max.in washing section 12m/min Max.in accelerating 50m/min Brush 3 pair(LOW-E) Power voltage 3p 41.5kw(380V)/50-60Hz
