| Model NO.: | Cbb65 |
|---|---|
| Packaging Qty: | Carton |
| Min. Order (MOQ): | 50 |
| Manufacure Name: | An hui safe electronics |
| Customization: | Available Customized Request |
|---|

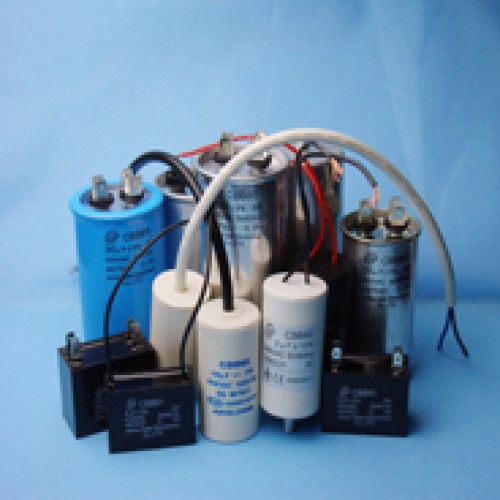

msn:ahsflrh@hotmail.com Item:CBB65 A.C. Description: Features and uses: CONSTRUCTION: non-inductive wound metallized polypropylene COATING: Aluminium case filled with oil RATED VOLTAGE: 180VAC~~~450VAC(250V/370V/400V/440V/450V) LIFE EXPECTANCY: CLASS B-10.000h /CLASS C-3,000h RATED FREQUENCY: 50/60Hz RATED CAPACITANCE: 2?F-100?F CAPACITANCE TOL.: ?5%, ?10% (standard), other tolerances upon request CLIMATIC CATEGORY: 40/85/21 (IEC 60252) OPERATING TEMP. RANGE: -40/+85?C CASE: Aluminium TEST VOLTAGE TERMINAL TO TERMINAL: 2.0 x Un for 60s (Un: rated voltage) TEST VOLTAGE TERMINAL TO CASE:= 2000VAC for 60s SAFETY CLASS:P1/P2 MAX. PERMISSIBLE VOLTAGE (RMS):1.1 x Un MAX. PERMISSIBLE CURRENT (RMS):1.3 x In MAX. PERMISSIBLE REACTIVE OUTPUT: 1.35 x Qn Approvals: UL,VDE,TUV,CSA,CQC
