| Model NO.: | Cc269a |
|---|---|
| Packaging Qty: | 4pcs/carton |
| Min. Order (MOQ): | 1 |
| Manufacure Name: | Wecan |
| Customization: | Available Customized Request |
|---|

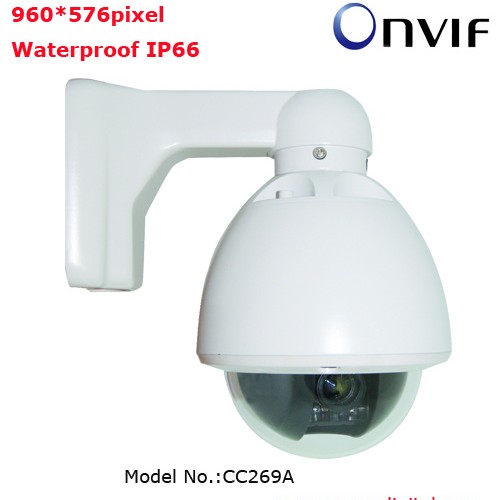

Features: 1. Compatible for Axxon,NUUO,Ivideon,VLC media player,Milestone,Avigilon and other client software; 2. High Speed PTZ IP Camera; 3. 1/3" Super HAD II Sony CCD; 4. Optic 12x,Digital 12x Zoom; 5. Support ONVIF; 6. Waterproof:IP66; 7. POE optional. Specifications: Network and Video Spec: Video compression:H.264 Main Profile @Level 3 Processor:Hi3507 Video resolution:PAL:960*576,704*576(4CIF),704*288(2CIF),352*288(CIF),176*144(QCIF) NTSC:960*480,704*480(4CIF),704*240(2CIF),352*240(CIF),176*120(QCIF) Video Frame Rate:PAL: 1-25frames/second NTSC:1-30frames/second Video Compression Bit rate:16-8000kbps Supported Protocols:TCP, UDP, IP, HTTP, FTP, SMTP, DHCP, DNS,ARP, ICMP, POP3, NTP, IPsec, UPNP,RTP,RTSP,IPV4 Streaming Format:Video Streaming or Audio &Video composite Streaming Audio Compression:G.711 Audio input:1 channel Audio output:1 channel Serial port: 1 pc, standard RS485 serial port Title OSD:Support Alarm Input:1channel,Optional Alarm Output:1 channel,Optional E-mail Alarm:Support Speed Dome Spec: Synchronous System: Negative sync.,12*12x Pan / Tilt Range:Pan: 360°(Endless), Tilt: 90°(Auto Flip) Pan / Tilt Speed:Preset: 360°/sec,Swing: 1~50°/sec Manual: 0.05~360°/sec(Proportional to zoom) Preset:127 Preset ( Label, Camera Image Setting ) Pattern:4 Patterns, 1200 commands ( About 5 minutes)/Pattern Swing:8 Swing Group:8 Groups ( 20 actions entities per group ) Other Functions:Auto flip, Auto parking, Power up action etc Communication:RS-485 Protocol:Pelco-D, Pelco-P selectable Privacy Zone:4 zones Alarm Input:4 Inputs OSD:Menu / PTZ information etc Camera Spec: CCD: 1/3" Super HAD II Sony CCD Max. Pixels:811(H)×508(V)410K NTSC 795(H)×596(V) 470K PAL Effective Pixels:768(H)×494(V) 380K NTSC 752(H)×582(V) 440K PAL Horizontal Res.:650 TVL(Color),700 TVL(B/W) S/N Ratio:50dB(AGC Off) Zoom:12X optical zoom, 12X digital zoom Focal Length: f=5~60mm Min. Illumination:0.2Lux (Color), 0.02Lux (B/W), 50 IRE Focus:Auto / Manual / Semi-Auo Iris:Auto / Manual Shutter Speed:128X~1/120000 sec AGC:Normal / High / Off White Balance:Auto / Manual / (Red, Blue Gain Adjustable) BLC:Low / Middle / High / Off Flicker less:Selectable SSNR:Low / Middle / High / Off Environmental Spec: Operating Temp:-10 °C ~ + 70 °C Operating Humidity:10 ~85% Rated Power:DC12V / 1A, Dimensions: Ø138x212mm N. Weight:1.90kg
