Product Description

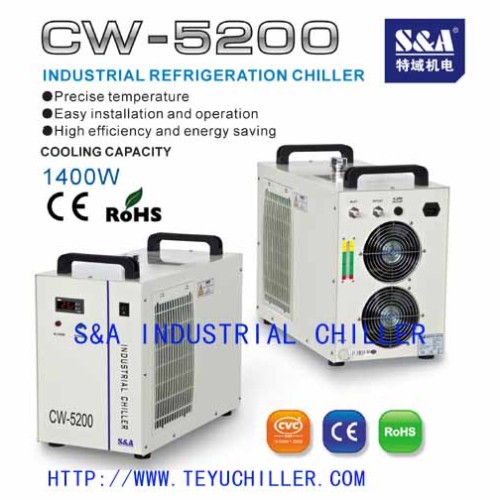

220v50hz/60hz process cooling chiller CW-5200 chiller is producted by Guangzhou Teyu Electromechanical Co., Ltd. S&A CW-5200 is refrigeration type cooling chiller of 1400W cooling capacity. It is applied for cooling engrave electric spindle. It’s mainly used to have the heat generated during the laser device working that gone through the refrigerating cycle in compressor refrigeration system and eventually transferred to the air. CW5200 cooling chiller specfications: One-stop automatic intelligent temperature control: in different environment, user does not need to change setting due to it will automatically switch to appropriate operating temperature. CW-5200AG: applied to cool a single 130W CO2 laser tube CW-5200AH: applied to a cool a single 8KW CNC spindle, welding equipment or two 100W CO2 laser tubes. CW-5200AI: applied to a cool single 50W-75W laser diode, a single15W-30W solid-state laser or a single 30W RF laser tube; Optional: CW-5202 dual water inlet and outlet series; heat booster; water filter. Voltage:110V-220V; Frequency: 50/60Hz; Refrigerant: R-22 / R-134a / R-410a Pump power: 0.03KW/0.05KW/0.1KW; Tank capacity:6L Max. lift:10M-25M; Max. flow: 10L/min- 16L/min N.W: 26Kgs; G.W: 29Kgs; Dimension : 58 X 29 X 47 cm (L X W X H); Packing dimension: 70 X 43 X 58 cm (L X W X H) About S&A Brand TEYU produces more than 60000 units of industrial chillers by year,we always insist on”Quality First” in design and production. “S&A” and “TEYU” have been enjoying high reputation among hundreds of manufacturers which are from both at home and abroad,and export rate reaches above 60% CONTACT S&A MSN: teyuchiller@hotmail.com TE:+86-20-89301885 FAX:+86-20-84309967 SKYPE: teyuchiller Email:marketing@teyuchiller.com Website: http://www.teyuchiller.com
