Product Description

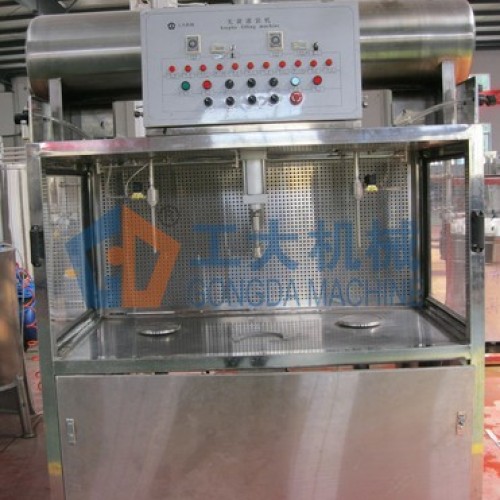

Aseptic Filling Machine 1. The main component: The machine invludes frame, the elevtrical control system, solenoid pilot actuated value, pneumatic componets, membrane filter fan, ultravidet lamp, systems back to wine components. 2. Fatures: This machine is specially designed for 5L pop cans. The control unit adopts Siemens small PLC for controlling the whole process. This machine can be used to finish aseptic filling in condition of sterilize by membrane filter machine and ultraviolet lamp. The machine fills the beer barrel in the way of vacuum-pumping and CO2 pressure preparation. 3. Main technical parameter Size of plate form: 960mm*800mm Height of plate form: 800mm Size of the machine: 1000mm*1300mm*1530mm Production capacity: 50 - 70keg per hour Pressure of the beer: 0.2--0.3Mpa Pressure of the air: 0.6--0.7 Mpa Pressure of the CO2: 0.2--0.3 Mpa Pressure of the cylinder: 0.3--0.5 Mpa Voltage of the electricity: AC220V 50HZ
